Test 10B

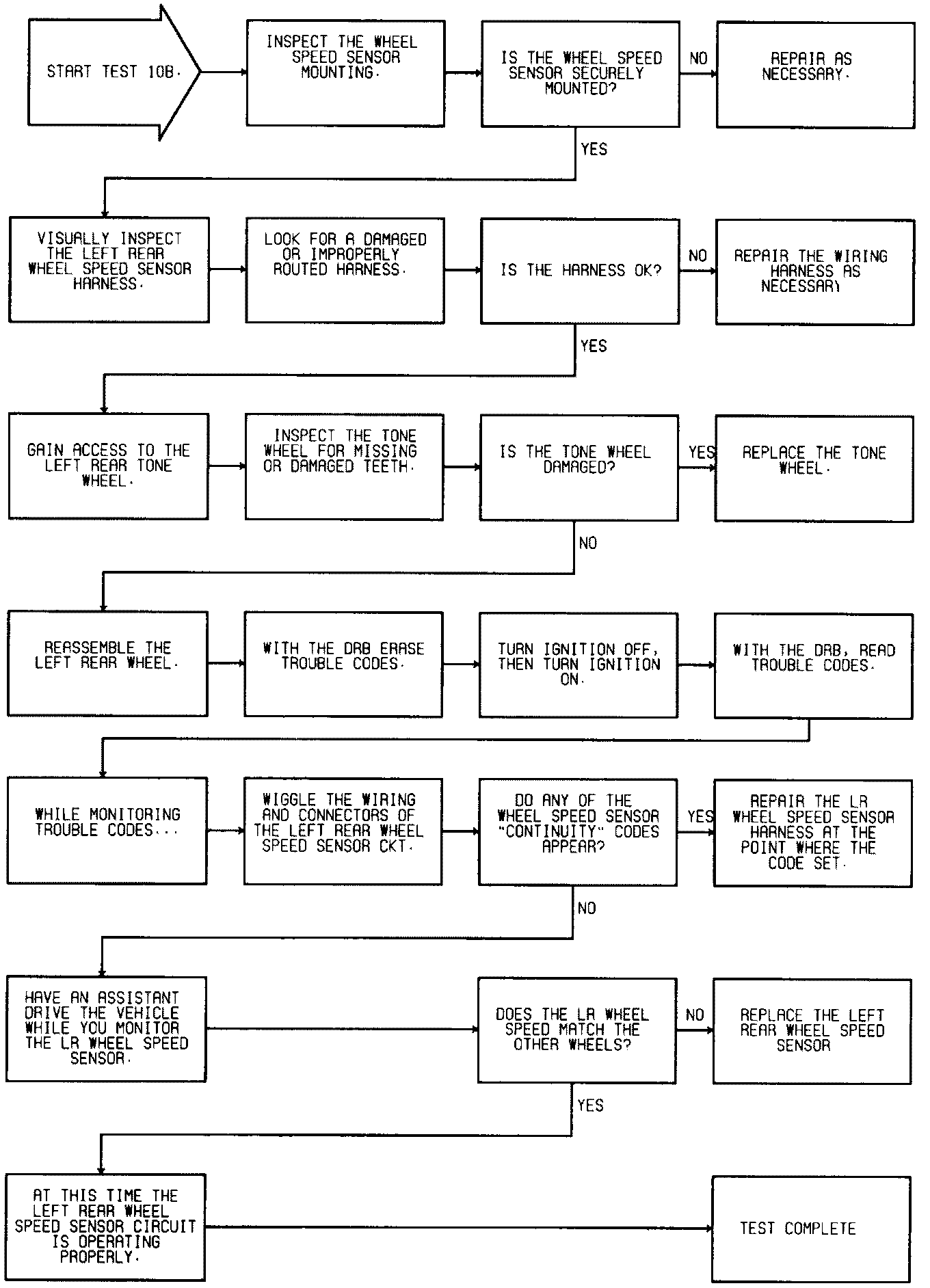

Test 10B: Repairing -- Left Rear Wheel Speed Sensor:

Right Rear Wheel Speed Sensor Attachment:

ABS Electrical Layout:

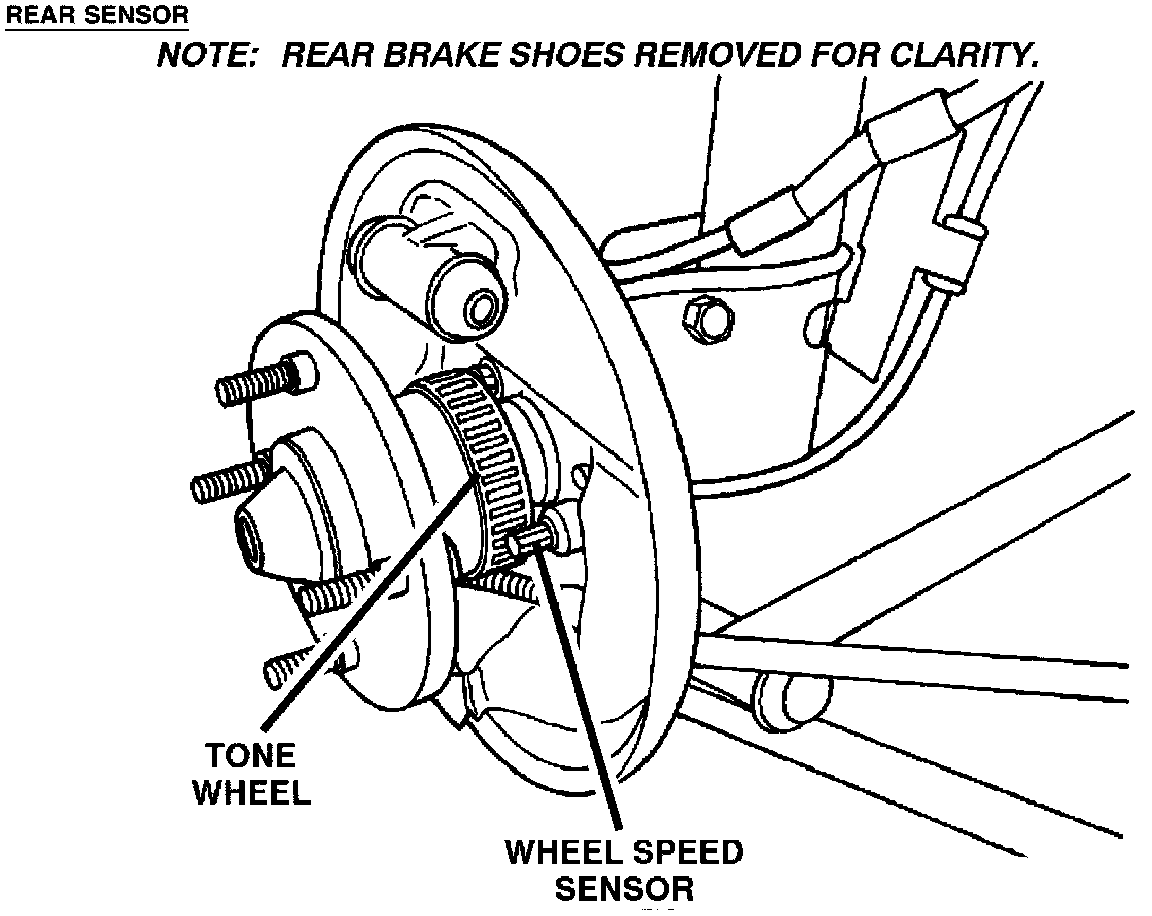

Rear Wheel Speed Sensor:

NOTE: You must perform Test 10A, before performing this test.
