1, 2 and 3 Digit Codes: 38

CODE NUMBER
Scan tool: 38
General scan tool: P0740

CODE NAME
Lockup control out of range

CODE DESCRIPTION
Electronically Modulated Converter Clutch (EMCC) operation is inhibited

PROBABLE CAUSE
- Low/high fluid level in transaxle
- Internal transaxle problem

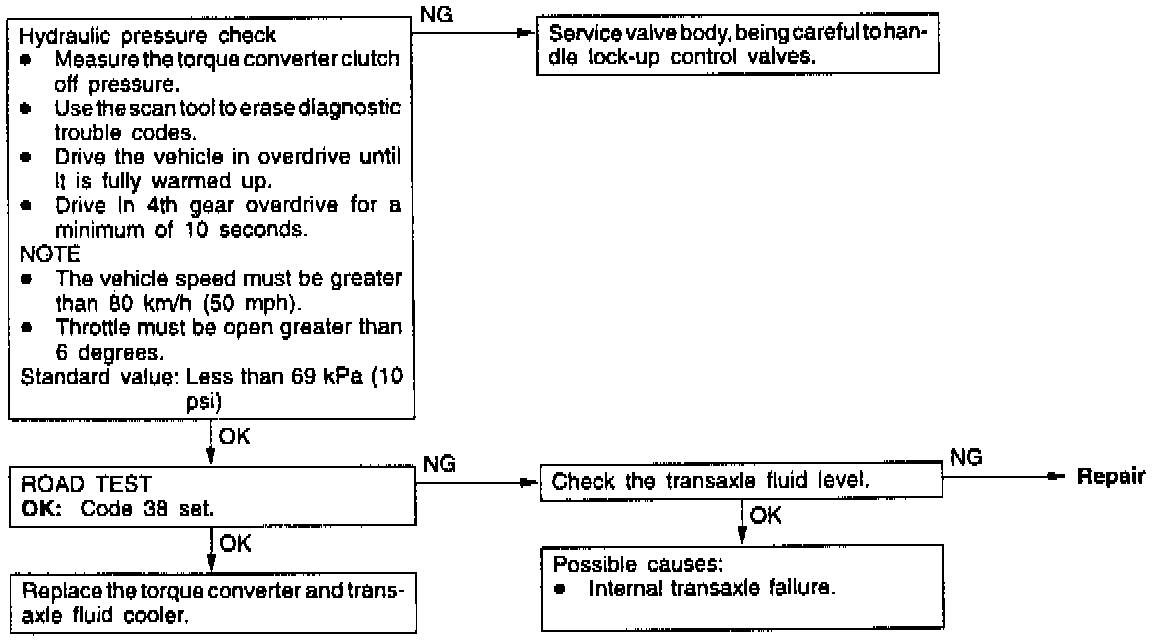

DIAGNOSTIC CHART
