1, 2 and 3 Digit Codes: 28

CODE NUMBER
Scan tool: 28
General scan tool: PO7O5

CODE NAME
Check shifter signal

CODE DESCRIPTION
Case 1: Invalid code timer has expired (100 msec.)
Case 2: Third occurrence of setting PRND2L data error flag since start-up

PROBABLE CAUSE
- Malfunction of transaxle range sensor
- Harness or connector between transaxle range sensor and TCM open or short-circuited
- Transaxle range sensor ground open-circuited
- Malfunction of TCM

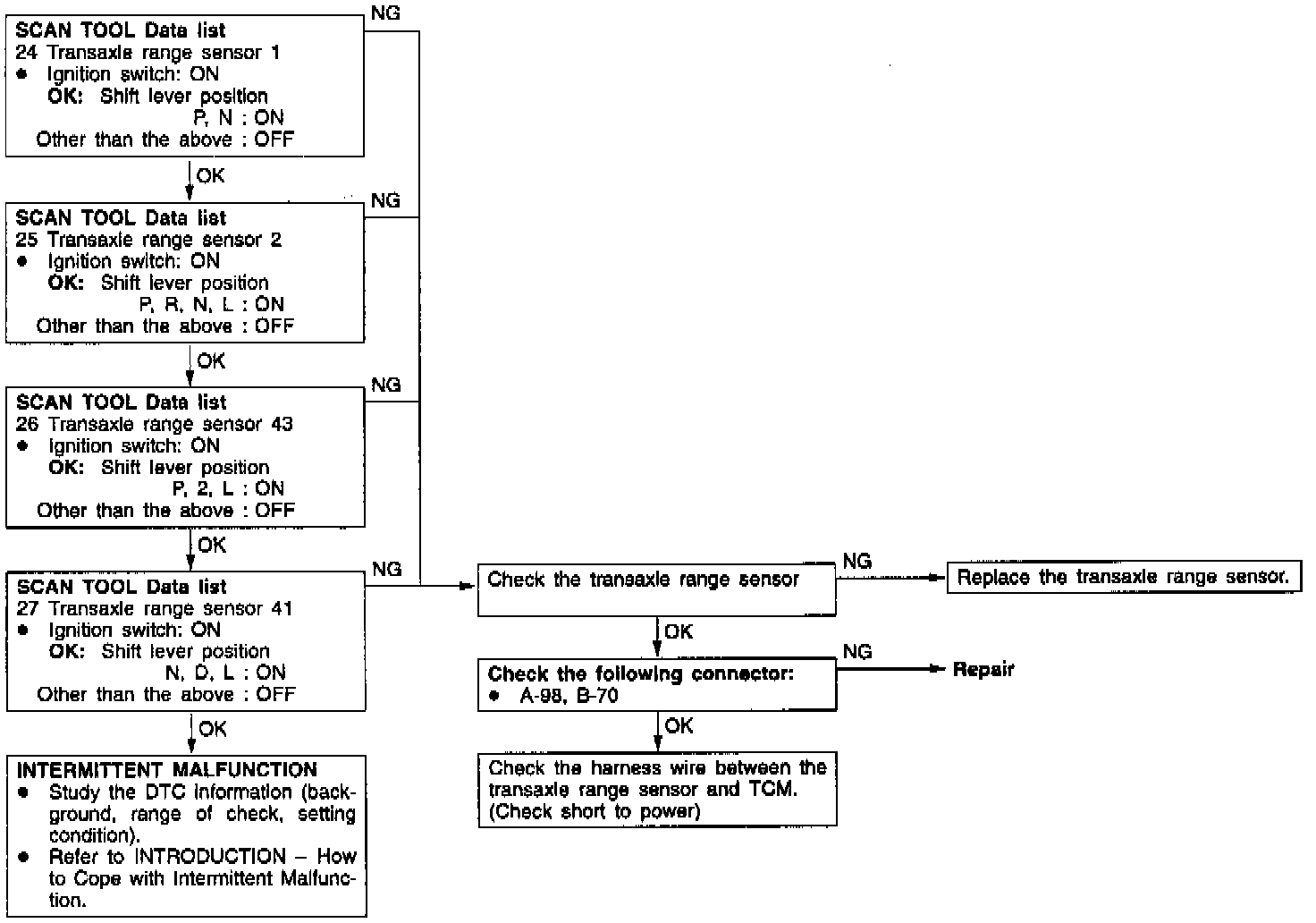

DIAGNOSTIC CHART
