1, 2 and 3 Digit Codes: 24

CODE NUMBER
Scan tool: 24
General scan tool: P1784

CODE NAME
Pressure switch circuit: LR

CODE DESCRIPTION
A mismatch has occurred between the shift condition and the pressure switch condition (ON/OFF) while the vehicle is moving.

PROBABLE CAUSE
- Low/high fluid level in transaxle
- Malfunction of pressure switch assembly
- Harness or connector between LR pressure switch and TCM open or short-circuited
- Malfunction of TCM
- Internal transaxle problem

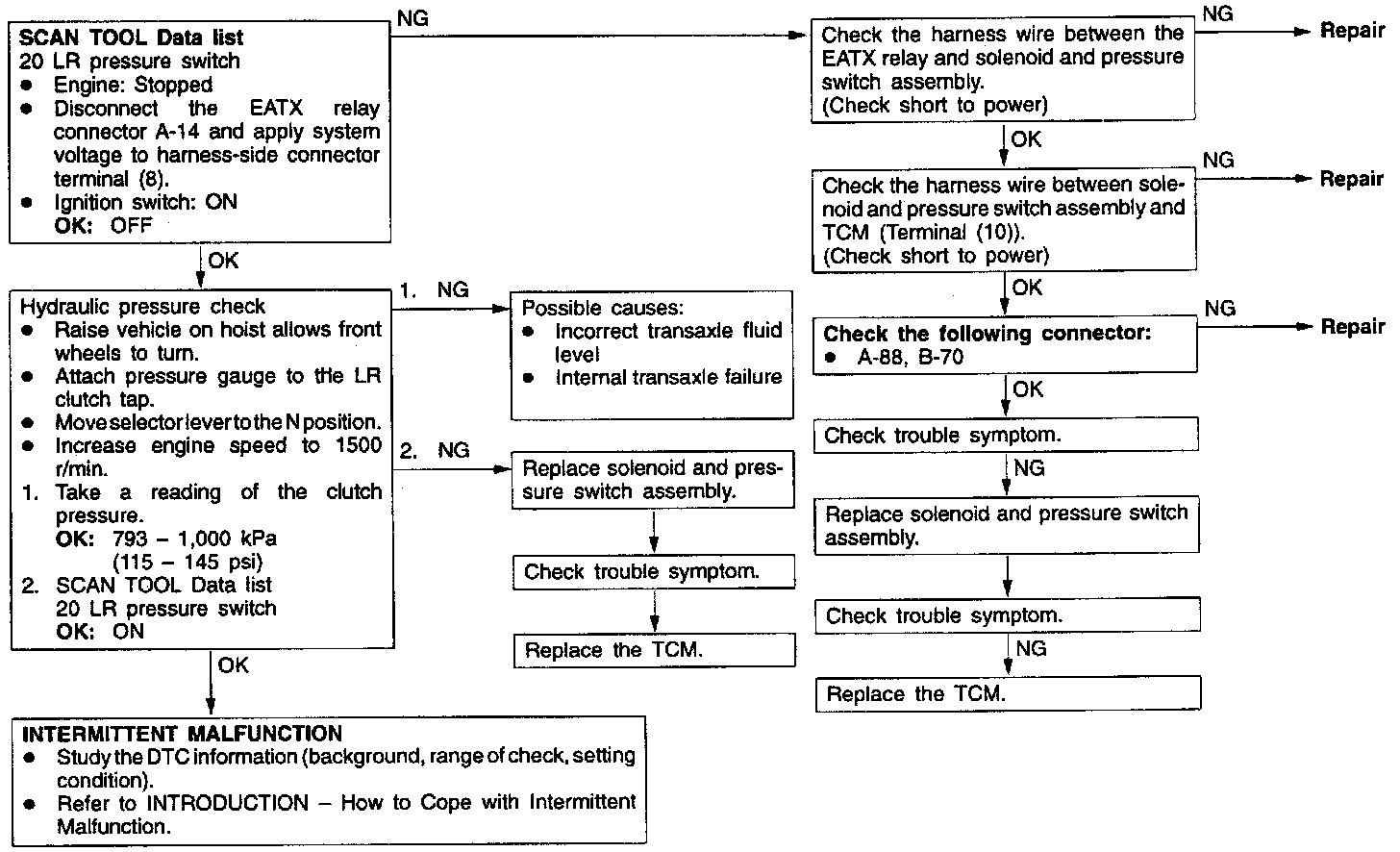

DIAGNOSTIC CHART
