1, 2 and 3 Digit Codes: 19

CODE NUMBER
Scan tool: 19
General scan tool: P0600

CODE NAME
CCD bus communication with PCM

CODE DESCRIPTION
No CCD messages received for 10 seconds.

PROBABLE CAUSE
- CCD bus between PCM and TCM open or short-circuited
- Malfunction of PCM

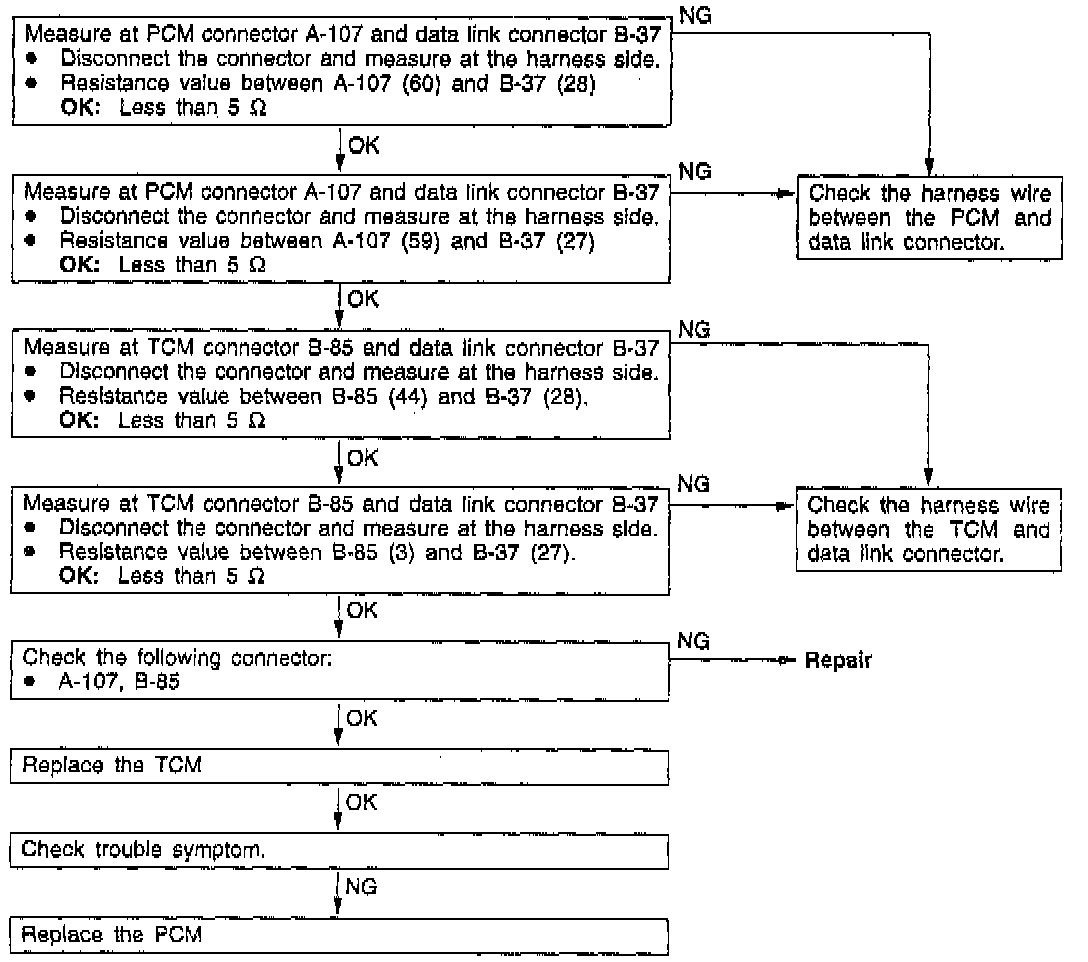

DIAGNOSTIC CHART
