1, 2 and 3 Digit Codes: 14

CODE NUMBER
Scan tool: 14
General scan tool: P1767

CODE NAME
Relay always on (Relay contacts are welded closed)

CODE DESCRIPTION
Relay output (switched battery) has more than 3 volts at TCM pins 56 and 57 (connector B-85) when TCM pin 55 (connector B-85) is turned off. Relay should be de-energized whenever ignition switch is OFF.

PROBABLE CAUSE
- Malfunction of relay (welded contacts)
- Short to power on control side of relay between relay and TCM
- Short to power on load side of relay between relay and TCM
- TCM relay driver circuit stuck ON

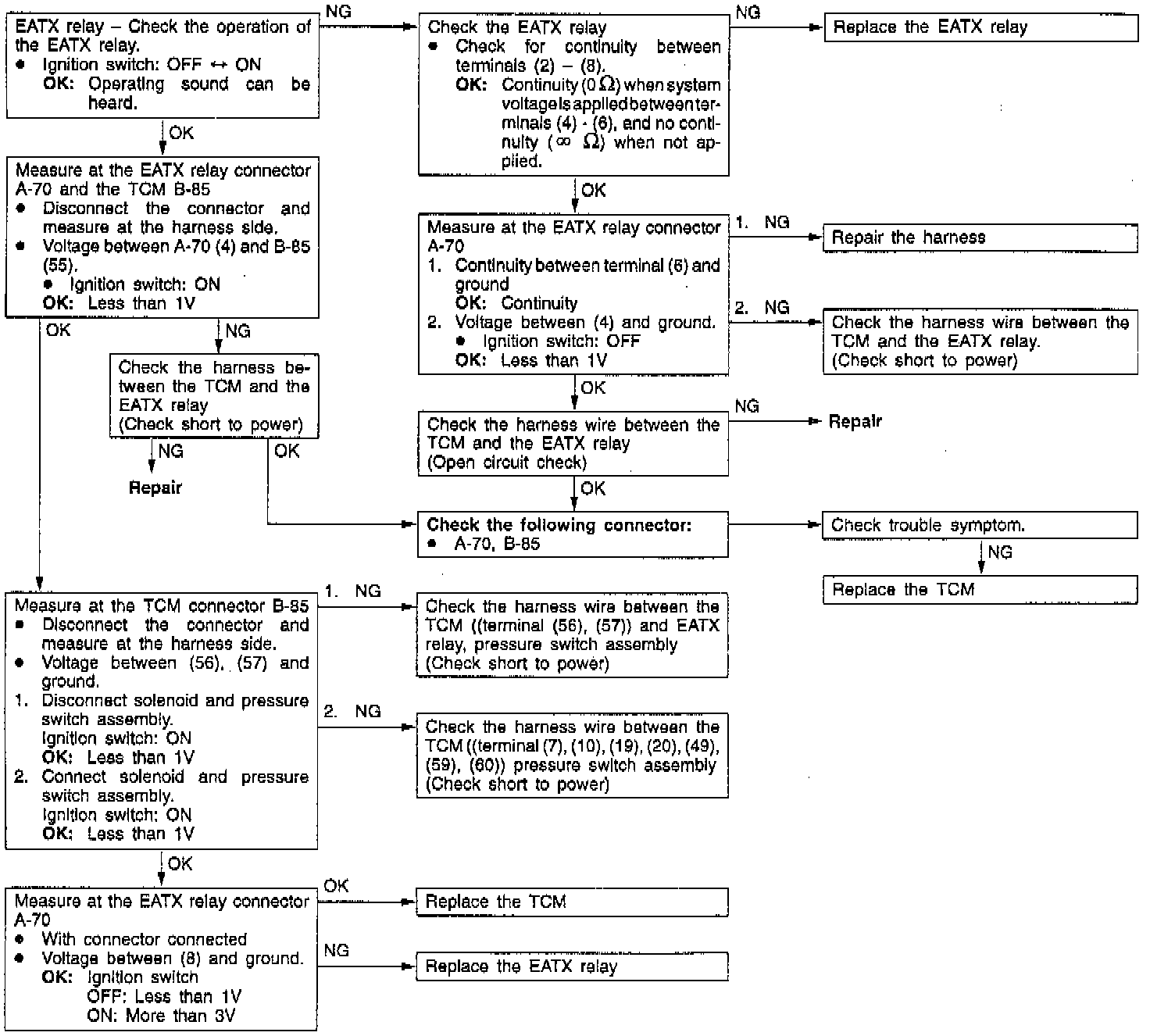

DIAGNOSTIC CHART
