Power Steering - Pressure Switch Torque Revision

NUMBER: 26-10-96

GROUP: Miscellaneous

DATE: October, 1996

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1997 Cirrus, Stratus & Breeze - Publication Number 81-270-7121

DESCRIPTION OF CHANGES

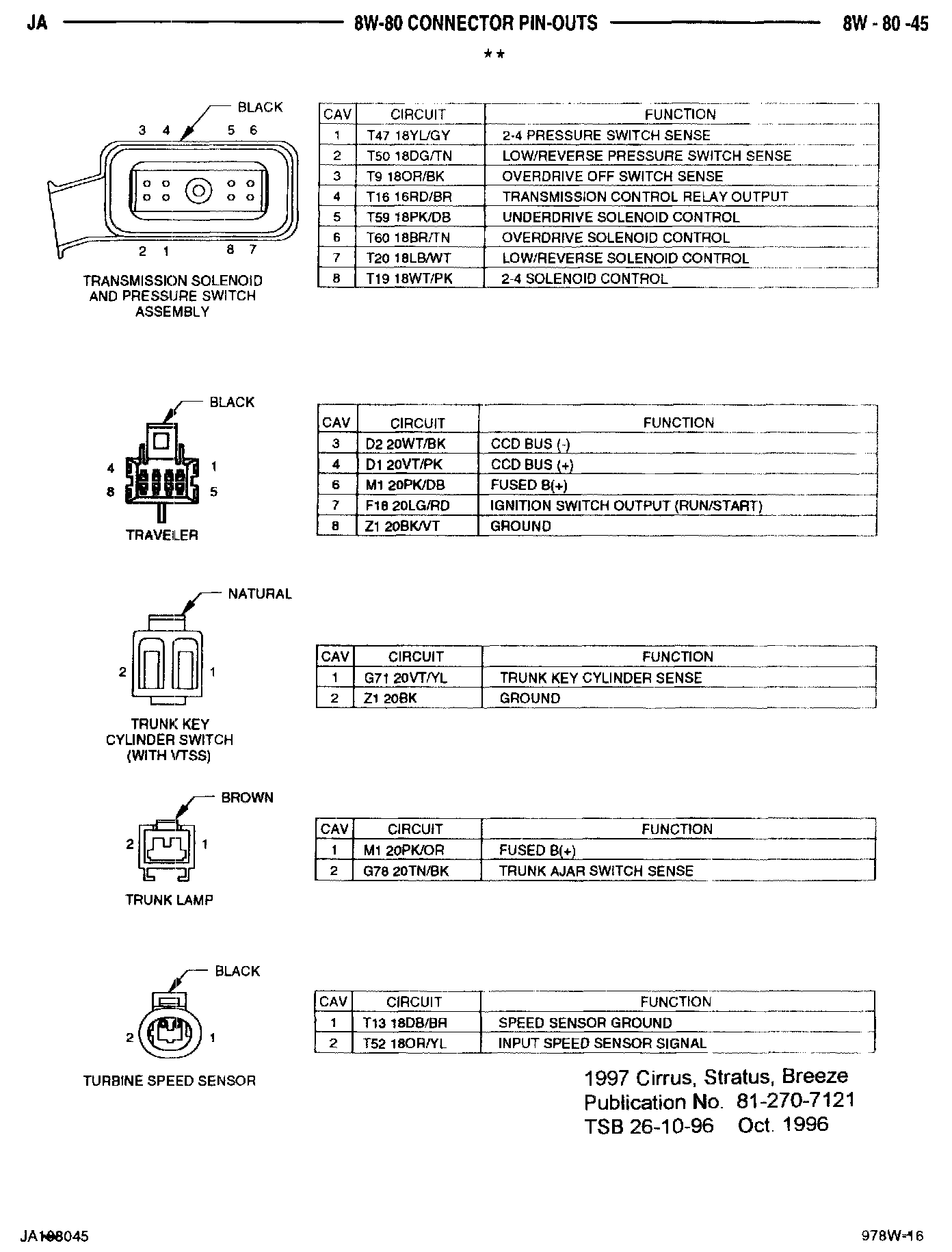

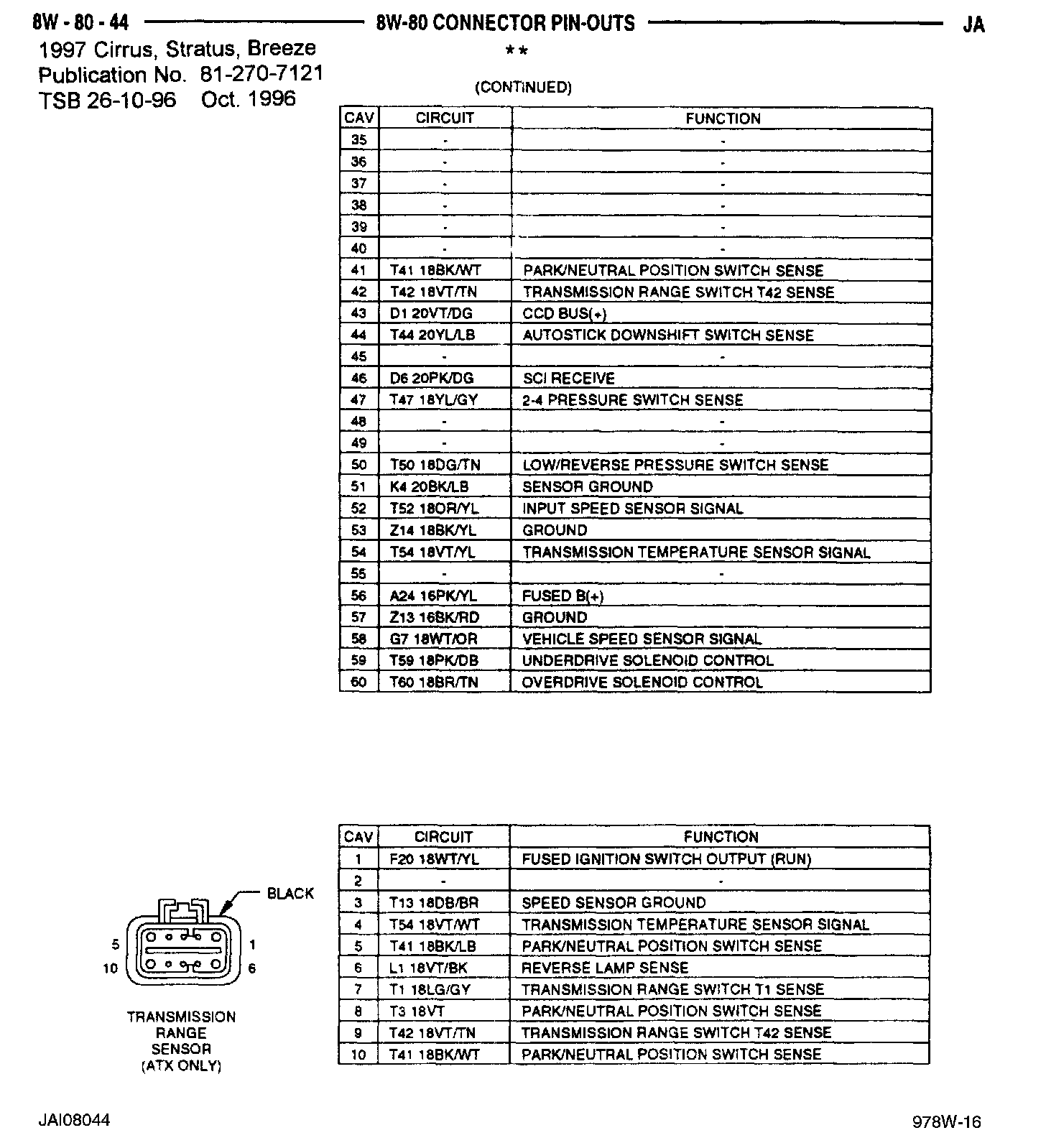

Wiring diagram revisions to the connector pin-outs





8W-80-44





8W-80-45





8W-80-46





8W-80-47
