Home
>>
Chrysler
>>
1996
>>
Sebring L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Wiper Motor
>>
Description and Operation
>>
Rear
Rear

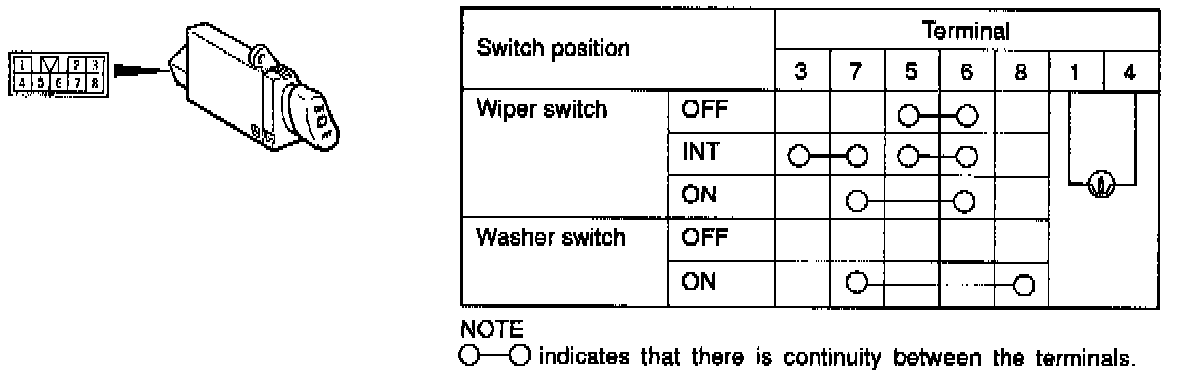

Fig.62 Rear Wiper Switch Inspection:
1.
Check continuity between terminals.
2.
If continuity is not as specified, replace switch.
