Rear

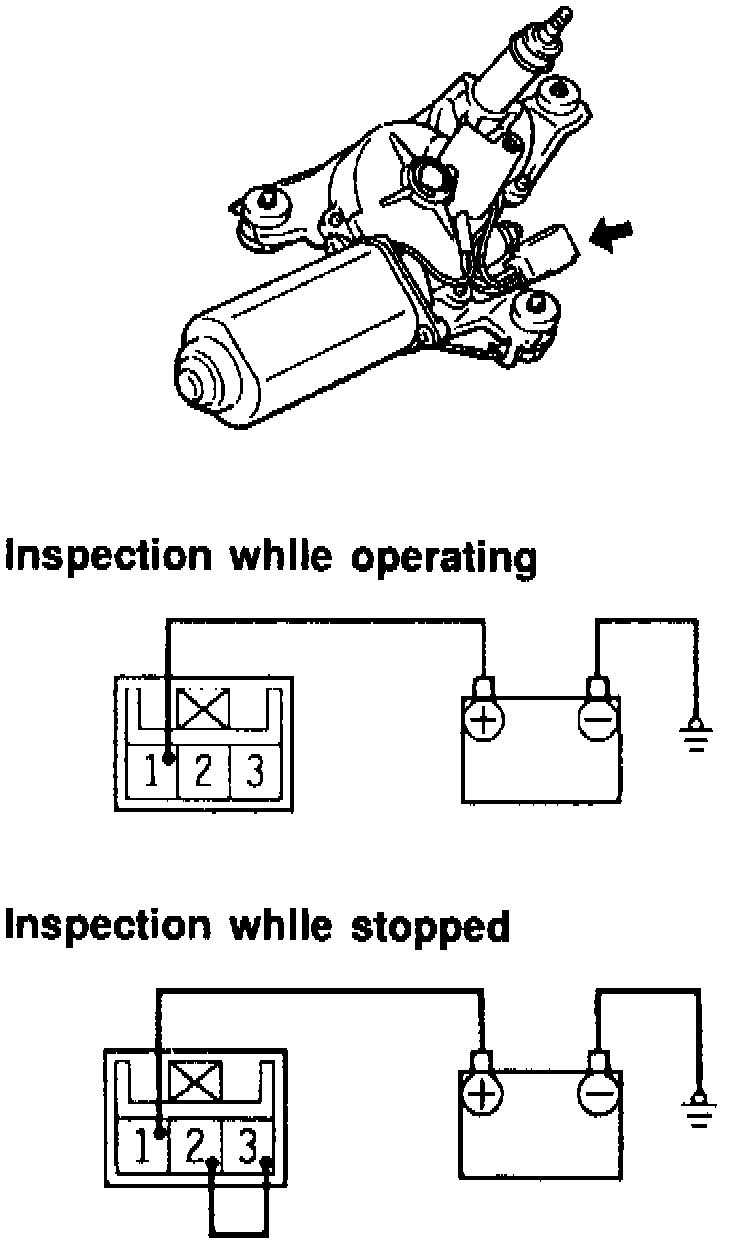

Fig.61 Rear Wiper Motor Inspection:

1. Operate wiper motor at low speed and intermediately disconnect battery to allow wiper motor to stop.
2. Connect terminals as well as battery as shown, and ensure wiper motor stops at automatically stopped position following low speed operation.
