Wiper and Washer Systems: Service and Repair

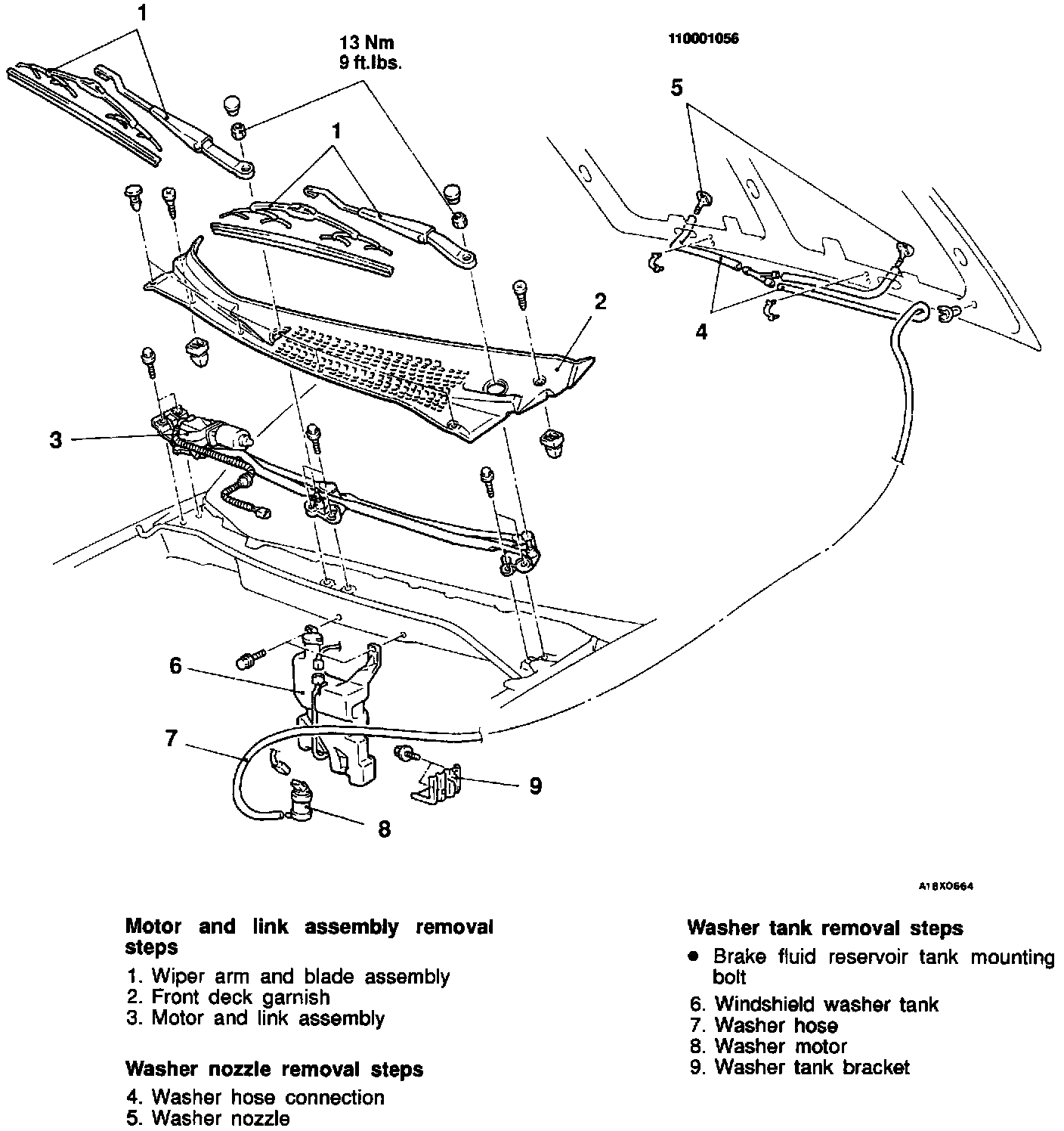

Windshield Wiper And Washer - Removal And Installation:

REMOVE
Motor And Link Assembly
1. Wiper arm and blade assembly
2. Front deck garnish
3. Motor and link assembly

Washer Nozzle
4. Washer hose connection
5. Washer nozzle

Washer Tank
- Brake fluid reservoir tank mounting bolt
6. Windshield washer tank
7. Washer hose
8. Washer motor
9. Washer tank bracket

INSTALL
Motor And Link Assembly
1. Motor and link assembly
2. Front deck garnish
3. Wiper arm and blade assembly

Washer Nozzle
4. Washer nozzle
5. Washer hose connection

Washer Tank
6. Washer tank bracket
7. Washer motor
8. Washer hose
9. Windshield washer tank
- Brake fluid reservoir tank mounting bolt

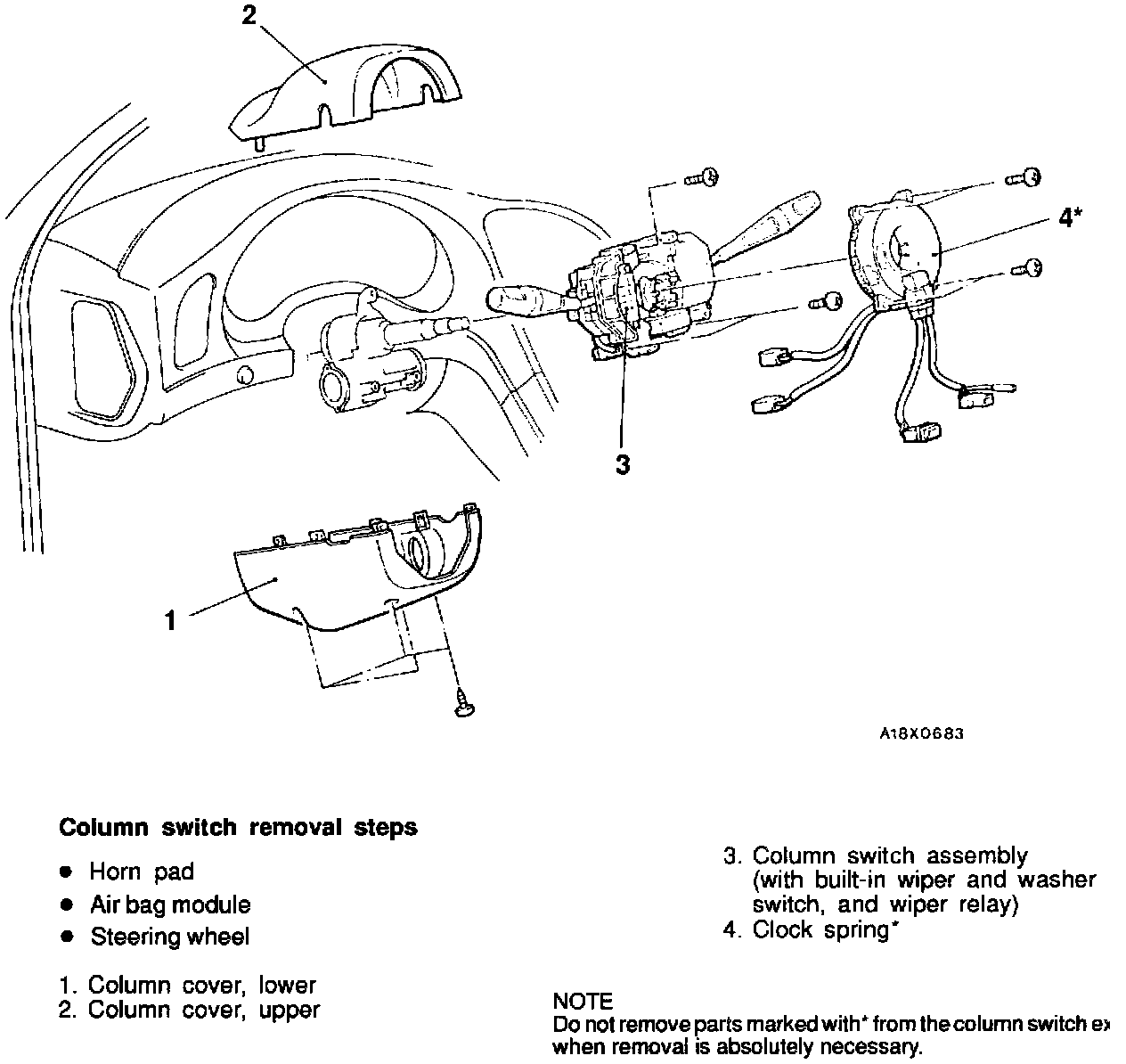

Windshield Wiper And Washer - Removal And Installation:

NOTE: Do not remove parts marked with * from the column switch except when removal is absolutely necessary.


REMOVE
Column Switch
- Horn pad
- Air bag module
- Steering wheel
1. Column cover, lower
2. Column cover, upper
3. Column switch assembly (with built-in wiper and washer switch, and wiper relay)
4. Clock spring*

INSTALL
Column Switch
1. Clock spring*
2. Column switch assembly (with built-in wiper and washer switch, and wiper relay)
3. Column cover, upper
4. Column cover, lower
- Steering wheel
- Air bag module
- Horn pad
