Clutch Replacement

The modular clutch assembly is comprised of a single, dry clutch disc, diaphragm style cover and flywheel. These components are not independently serviceable; the entire clutch module must be replaced as an assembly.
1. Drain clutch hydraulic fluid and transaxle fluid into suitable containers.

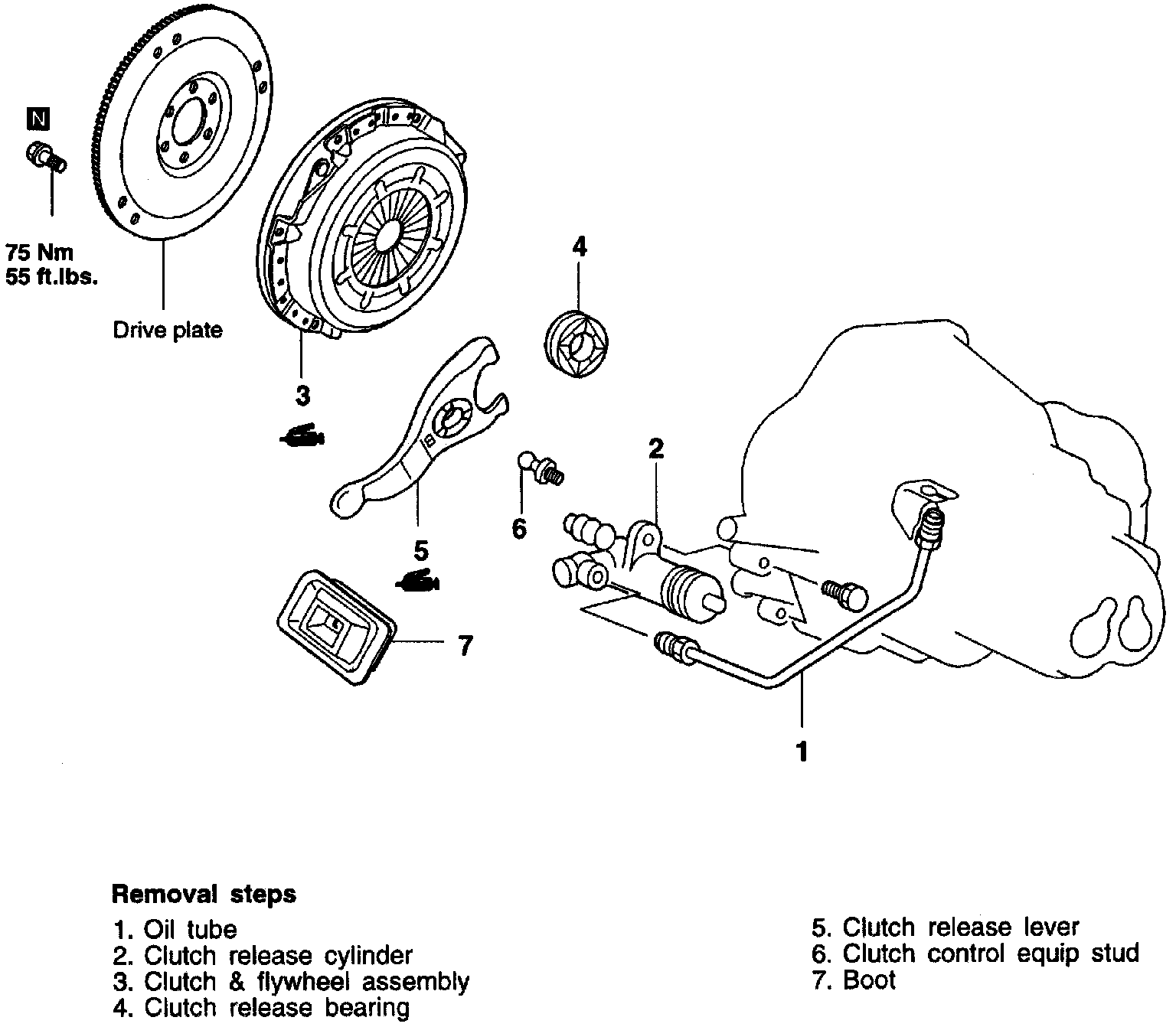

Fig. 6 Modular Clutch Replacement:

2. Remove clutch assembly in numbered sequence shown.
3. Reverse procedure to install, noting the following:
a. Apply Mitsubishi grease part No. 0101011, or equivalent, to contact points at ends of clutch release lever and to clutch disc splines. Use a suitable brush to force grease into splines.
b. Fill and bleed clutch hydraulic system as outlined under "Hydraulic System Service".
c. Fill transaxle with correct type of lubricant.
