Clutch Master Cylinder: Service and Repair

1. Drain clutch hydraulic fluid into a suitable container.

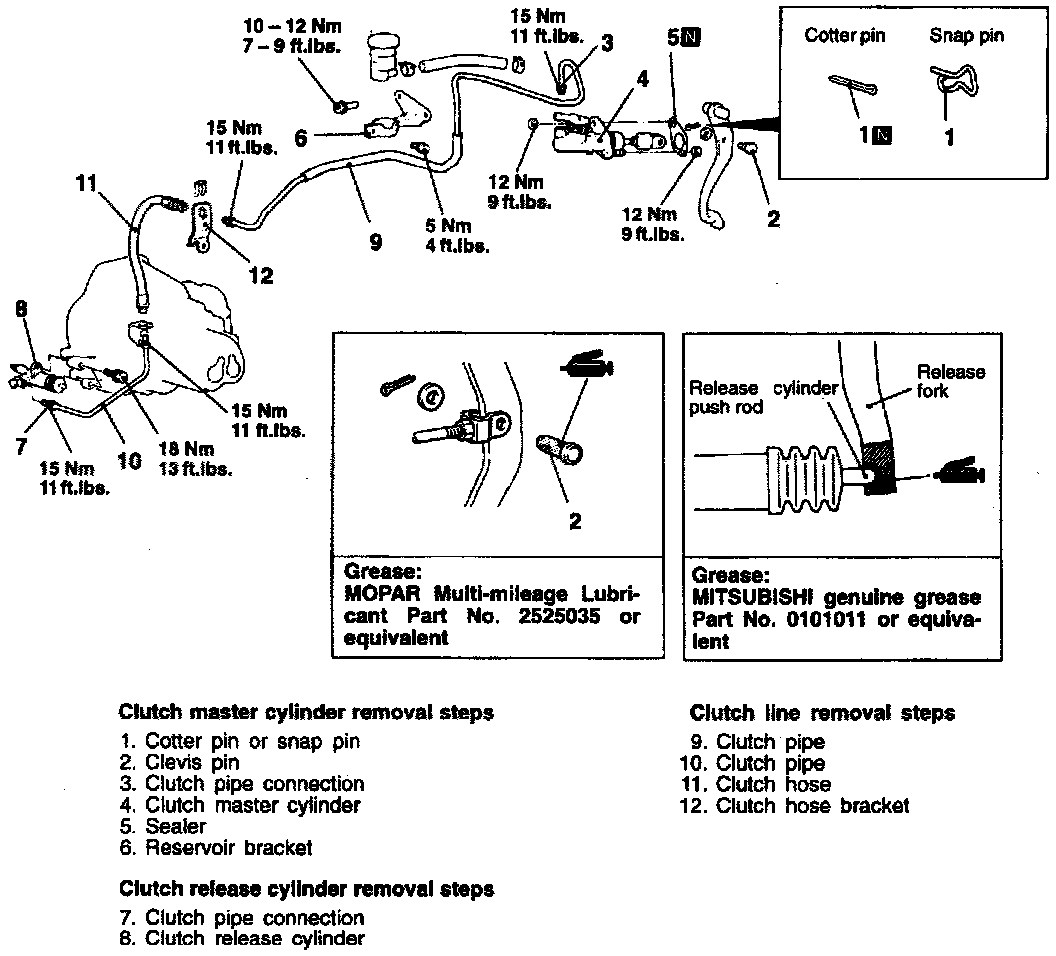

Fig. 5 Clutch Hydraulic System Component Replacement:

2. Remove master cylinder, slave cylinder and/or hydraulic lines in numbered sequences shown.
3. Reverse procedure to install, noting the following:
a. Fill and bleed clutch hydraulic system as outlined under "Hydraulic System Service".
b. Adjust clutch pedal as outlined under "Clutch Pedal Adjustment".
c. Tighten all fasteners to specifications.
