Symptom Related Diagnostic Procedures

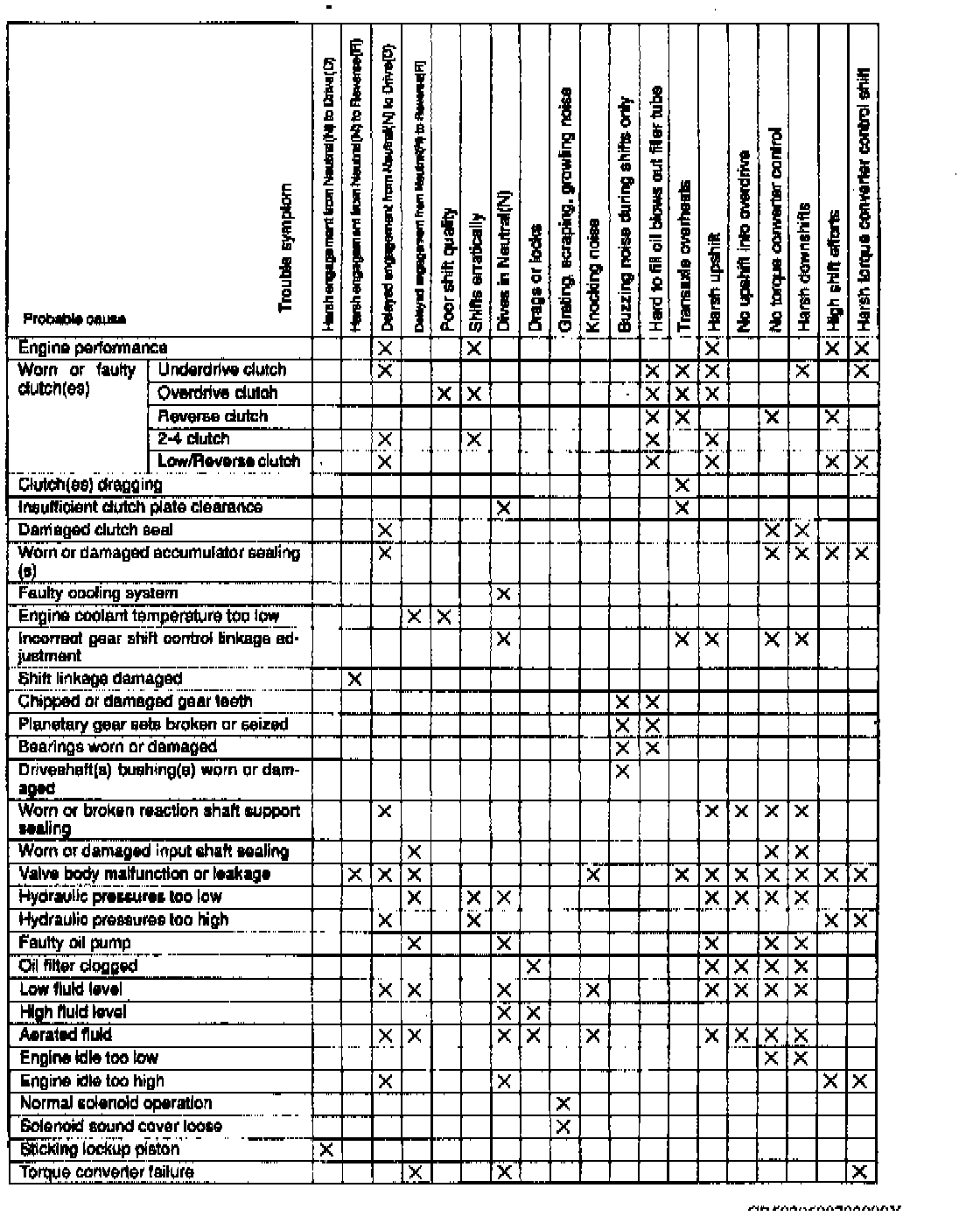

Fig. 12 Inspection Matrix For Trouble Symptoms:





Refer to figure when troubleshooting the transaxle.
