Test 6 Selector In Reverse

Hydraulic Pressure Tests:

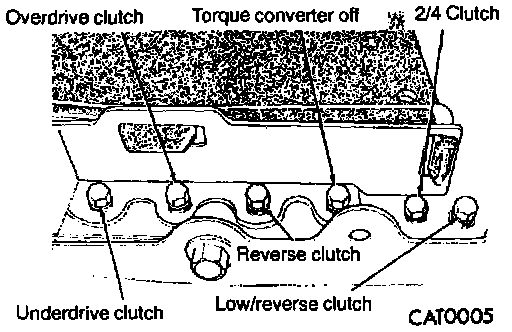

1. Attach pressure gauge to the reverse clutch tap.
2. Move selector lever to the reverse position.
3. Read reverse clutch pressure with output stationary (foot on brake)and throttle opened to achieve 1500 r/min.
4. Reverse clutch pressure should read 1138 to 1620 kPa (165 to 235 psi).
5. This test checks the reverse clutch hydraulic circuit.
