Home >> Chrysler >> 1996 >> Sebring L4-2.0L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shift Interlock >> Shift Interlock Cable >> Service and Repair

Shift Interlock Cable: Service and Repair

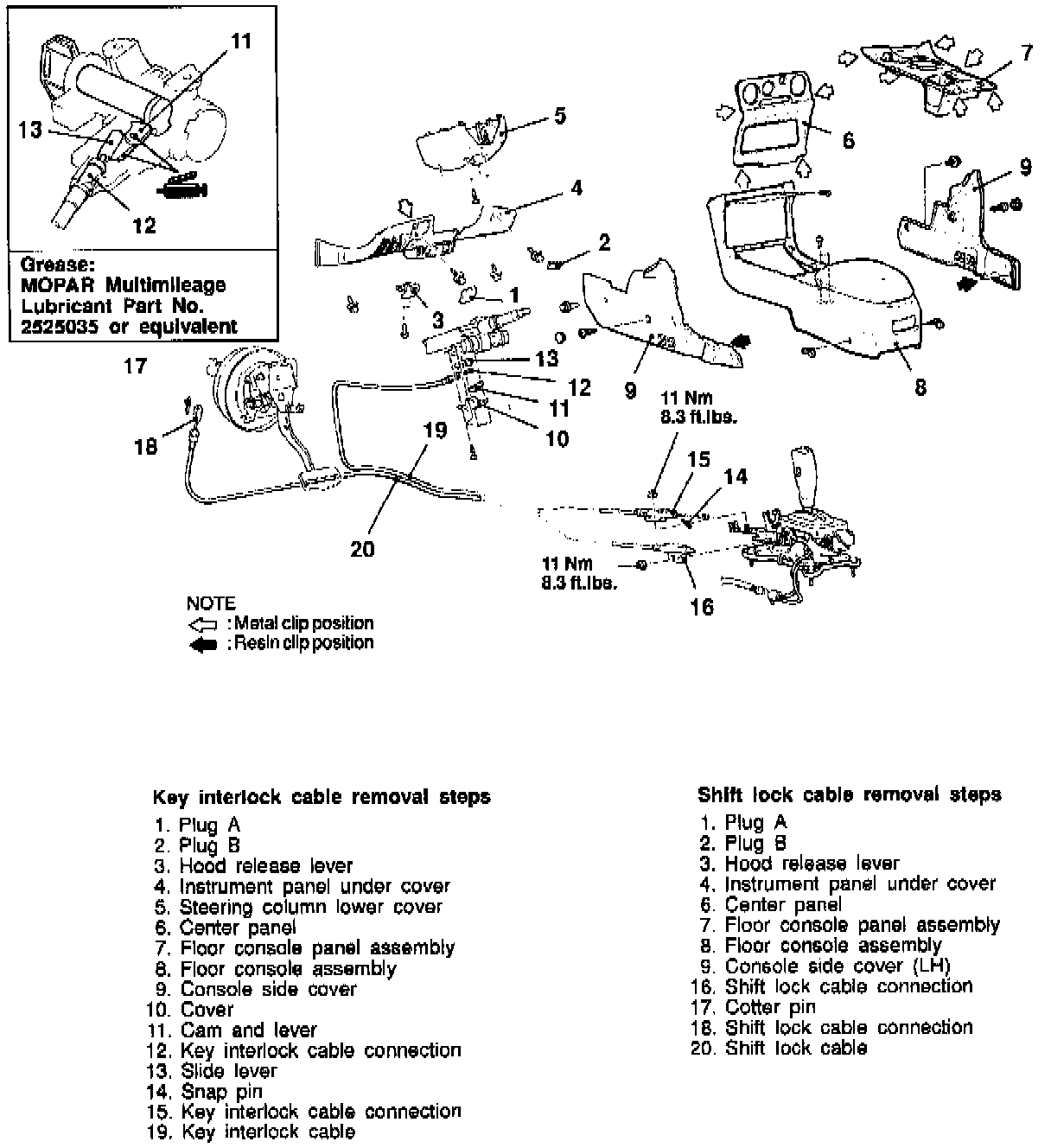

Refer to Fig.5 when replacing key interlock or shift lock cables.
