Rear Coil Spring Replace

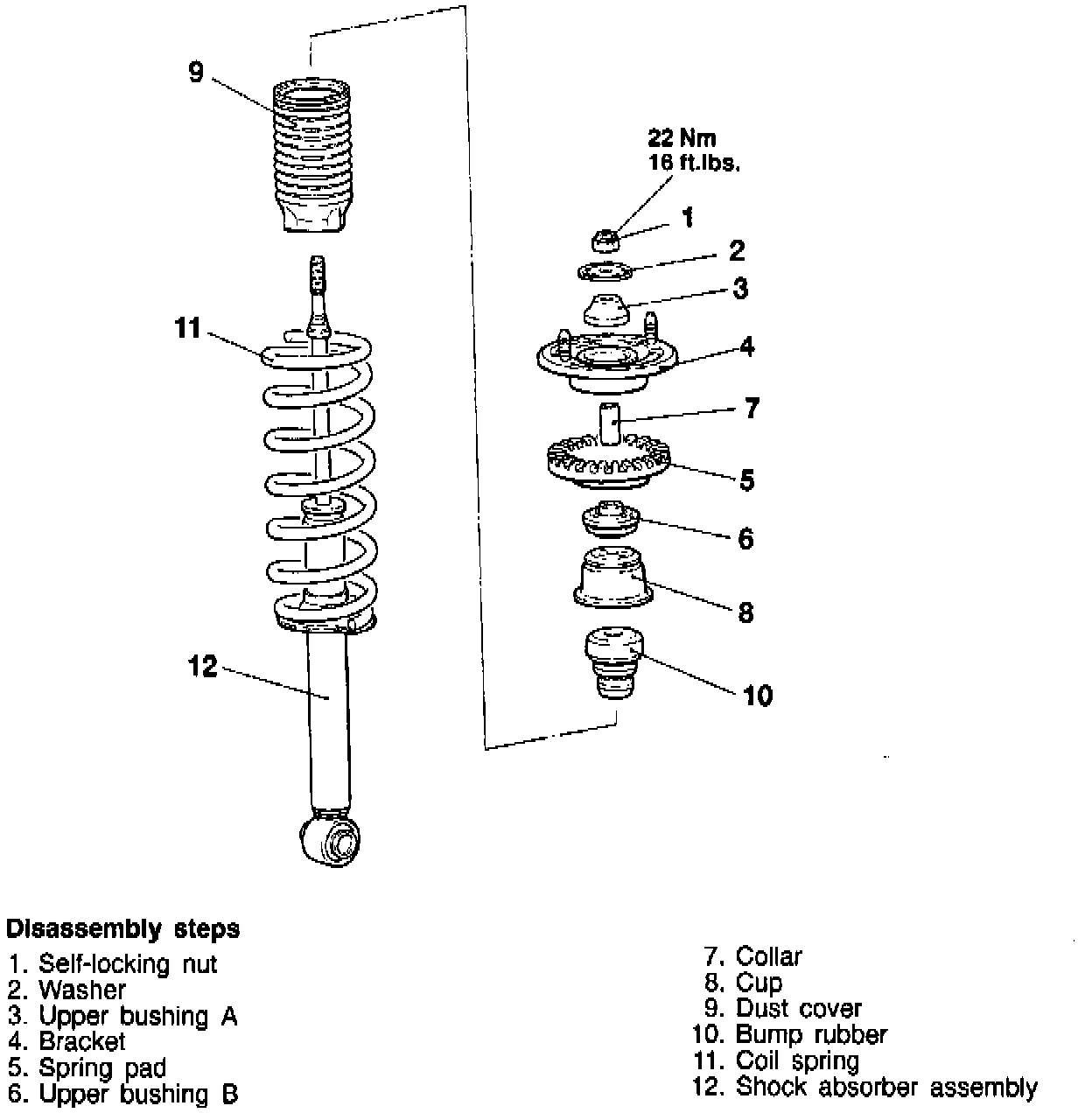

Fig. 3 Coil Spring Replacement:
Remove shock absorber and coil spring assembly then disassemble, as shown, to replace coil spring. Compress coil spring using compressor tool Nos. MB991237 and MB991239, or equivalents.
