Front Steering Knuckle: Service and Repair

1. Raise and support vehicle.
2. Remove front wheel and tire assembly.
3. On models equipped with ABS, remove front wheel speed sensor.
4. On all models, remove hub assembly as described under "Hub & Bearing, Replace".

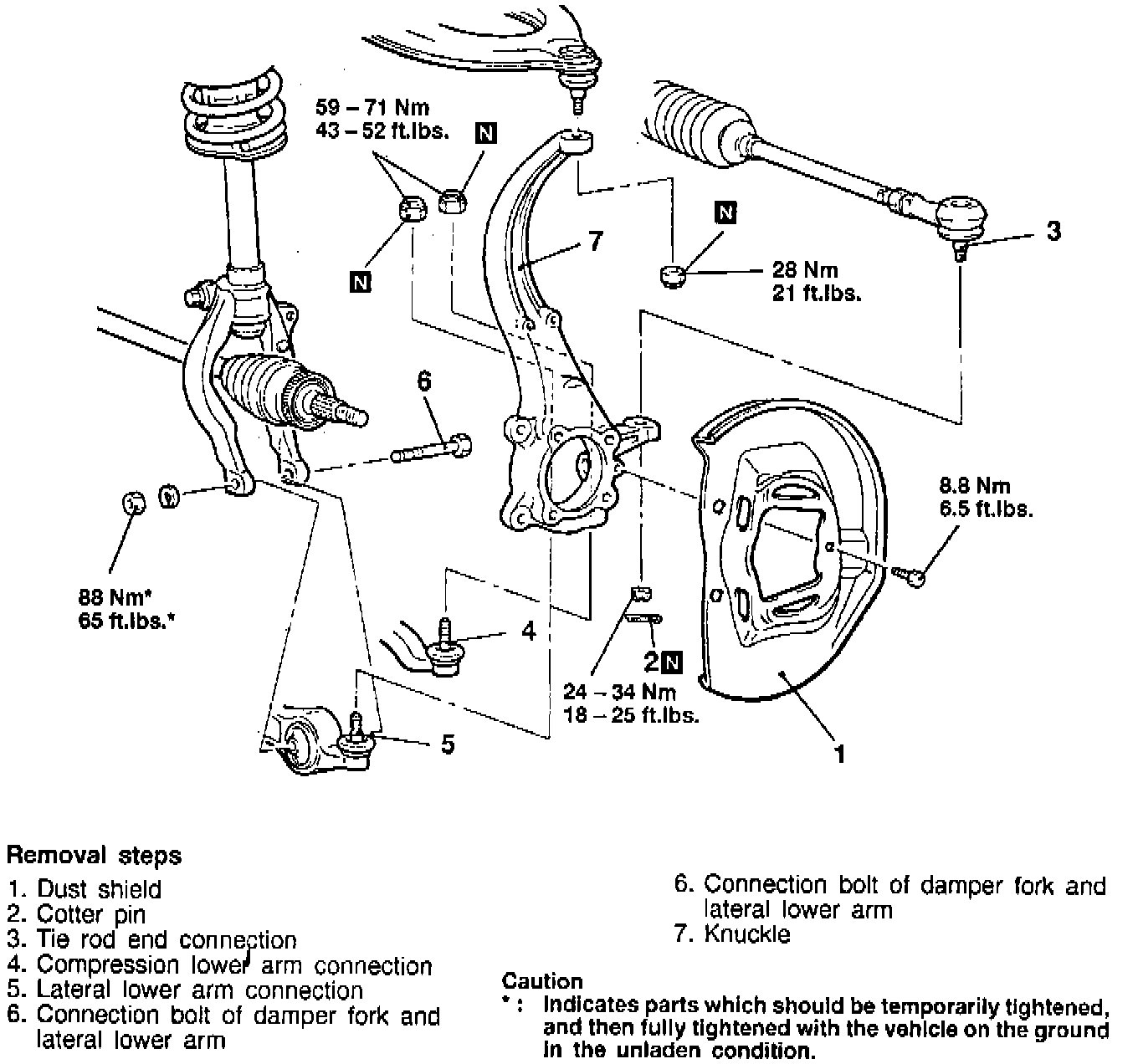

Fig. 7 Steering Knuckle Removal:

5. Removal of steering knuckle shown.
6. Reverse procedure to install. Tighten to specifications.
