Upper

1. Raise and support vehicle.

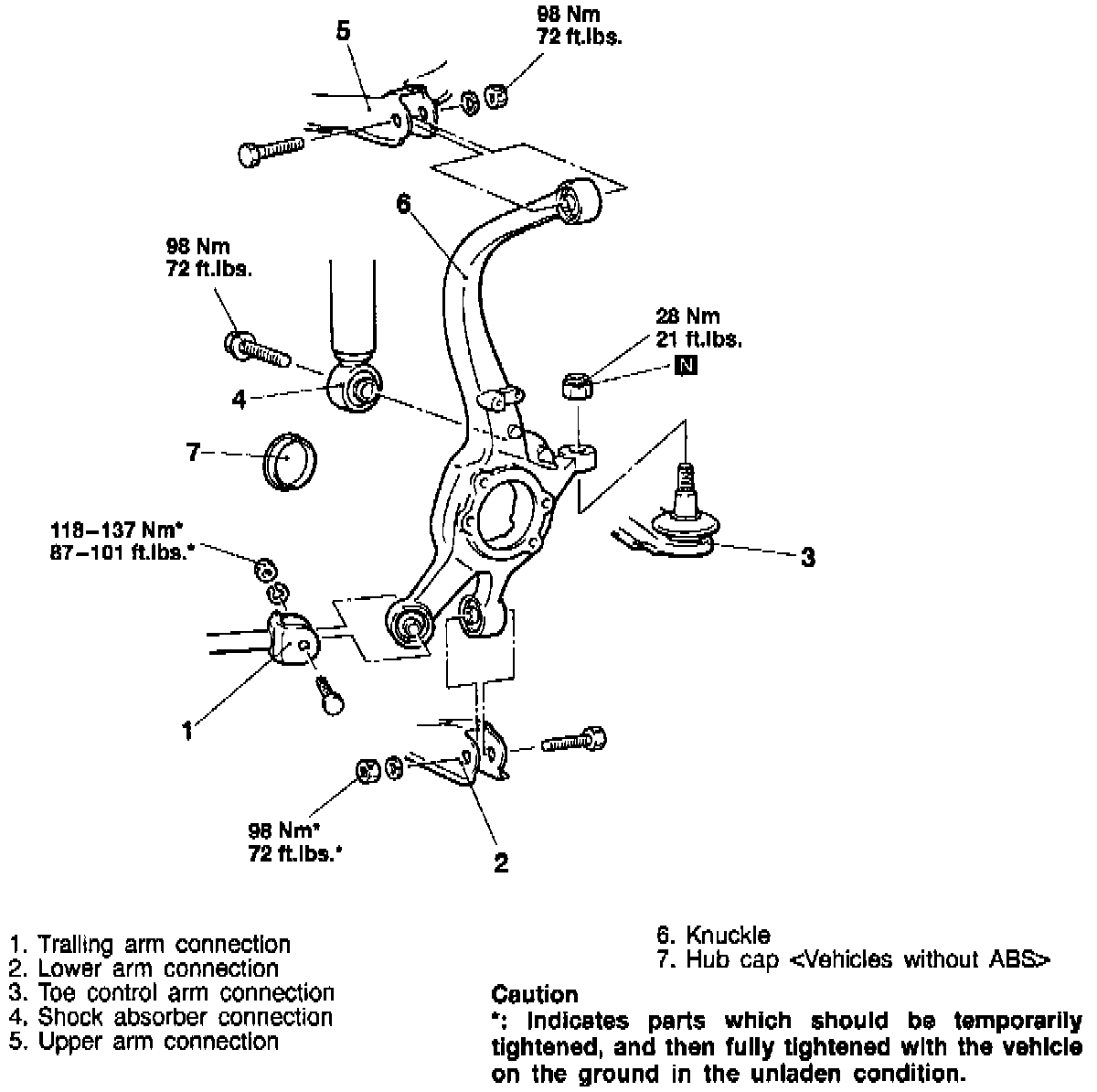

Fig. 4 Knuckle Removal:

2. Remove upper arm and knuckle connecting bolt,
3. Remove upper arm mounting bolt.
4. Remove upper arm assembly.
5. Remove upper arm bracket.
6. Reverse procedure to install. Tighten to specifications.
