Lower

1. Raise and support vehicle.

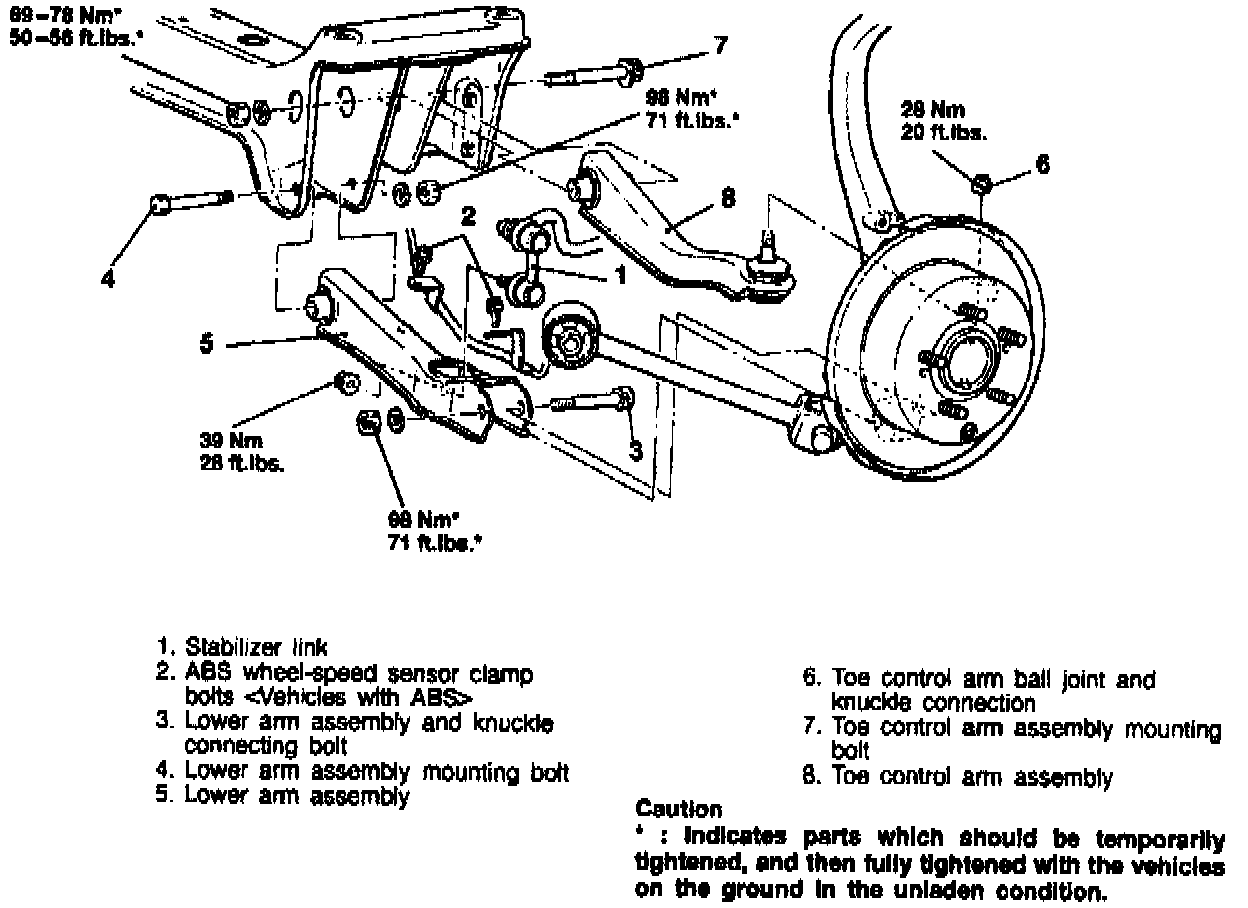

Fig. 5 Lower Arm & Toe Control Arm Removal:

2. Remove stabilizer link,
3. On models equipped with ABS, remove wheel speed sensor clamp bolts.
4. On all models, remove lower arm assembly and knuckle connecting bolt.
5. Remove lower arm mounting bolt.
6. Disconnect toe control arm ball joint from knuckle.
7. Remove toe control arm mounting bolt.
8. Remove toe control arm assembly.
9. Reverse procedure to install. Tighten to specifications.
