Upper

1. Raise and support vehicle.

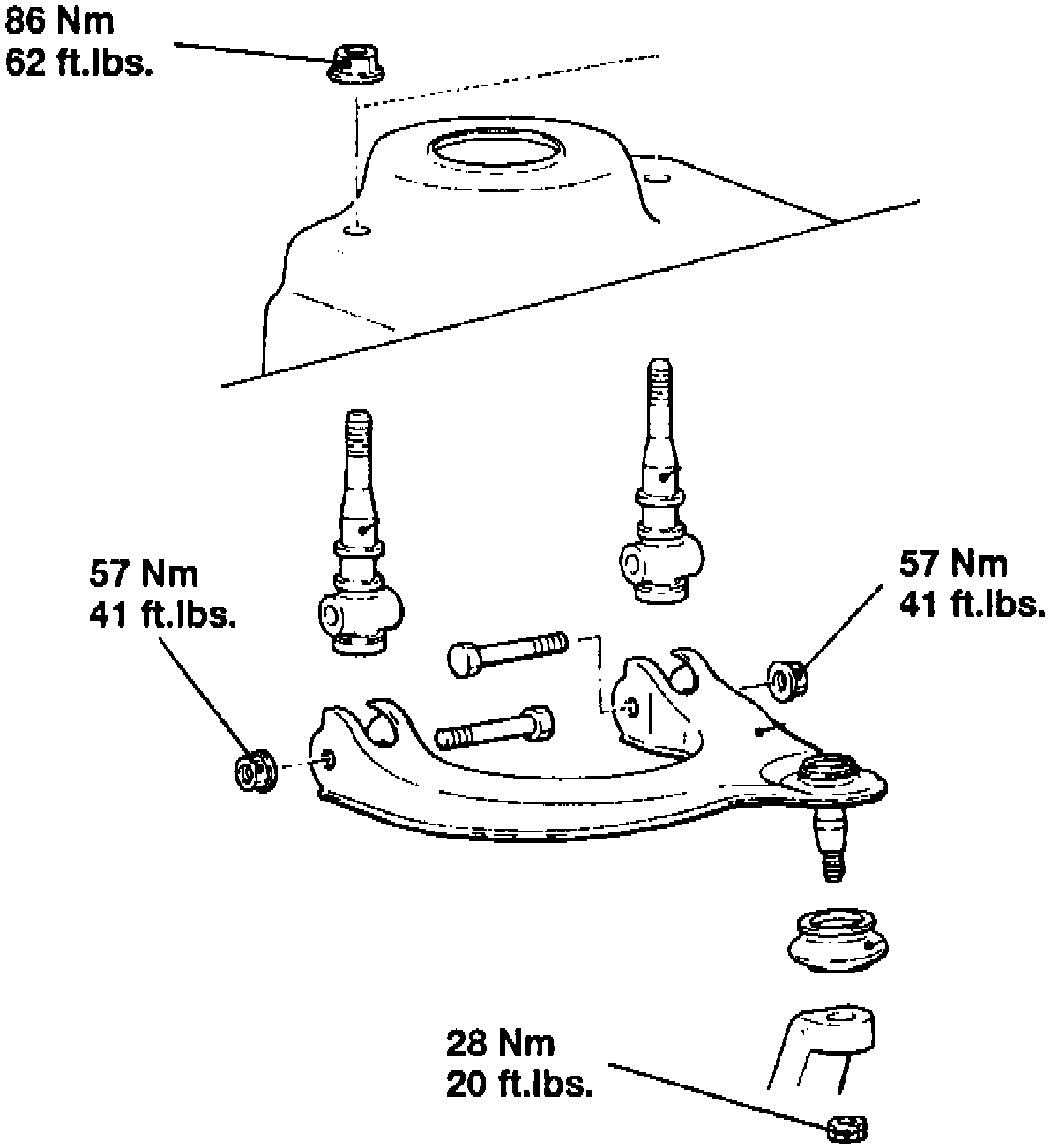

Fig. 4 Upper Arm Removal:

2. Disconnect upper arm ball joint from knuckle.
3. At engine compartment shock tower, remove self-locking nut for upper arm installation.
4. Remove upper arm assembly.
5. Remove dust cover.

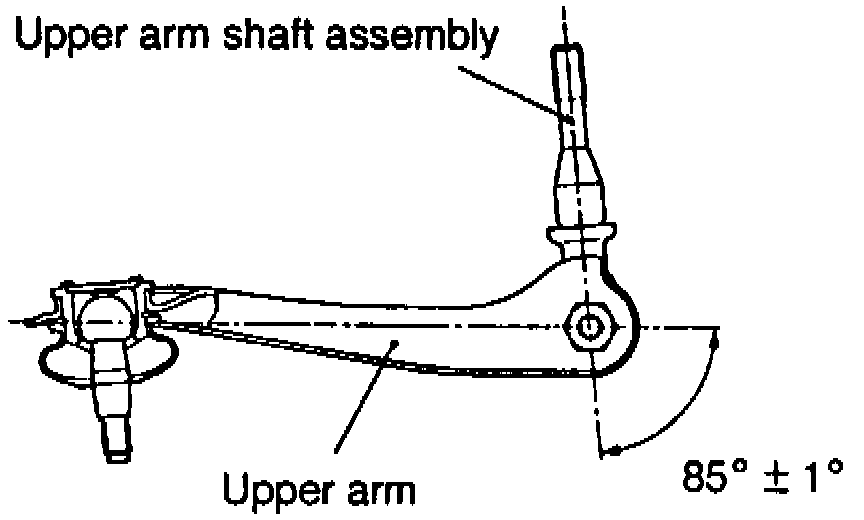

Fig. 5 Upper Arm Shaft Installation:

6. Reverse procedure to install. Install upper arm shaft at angle shown, and tighten to specifications.
