Steering Gear: Service and Repair

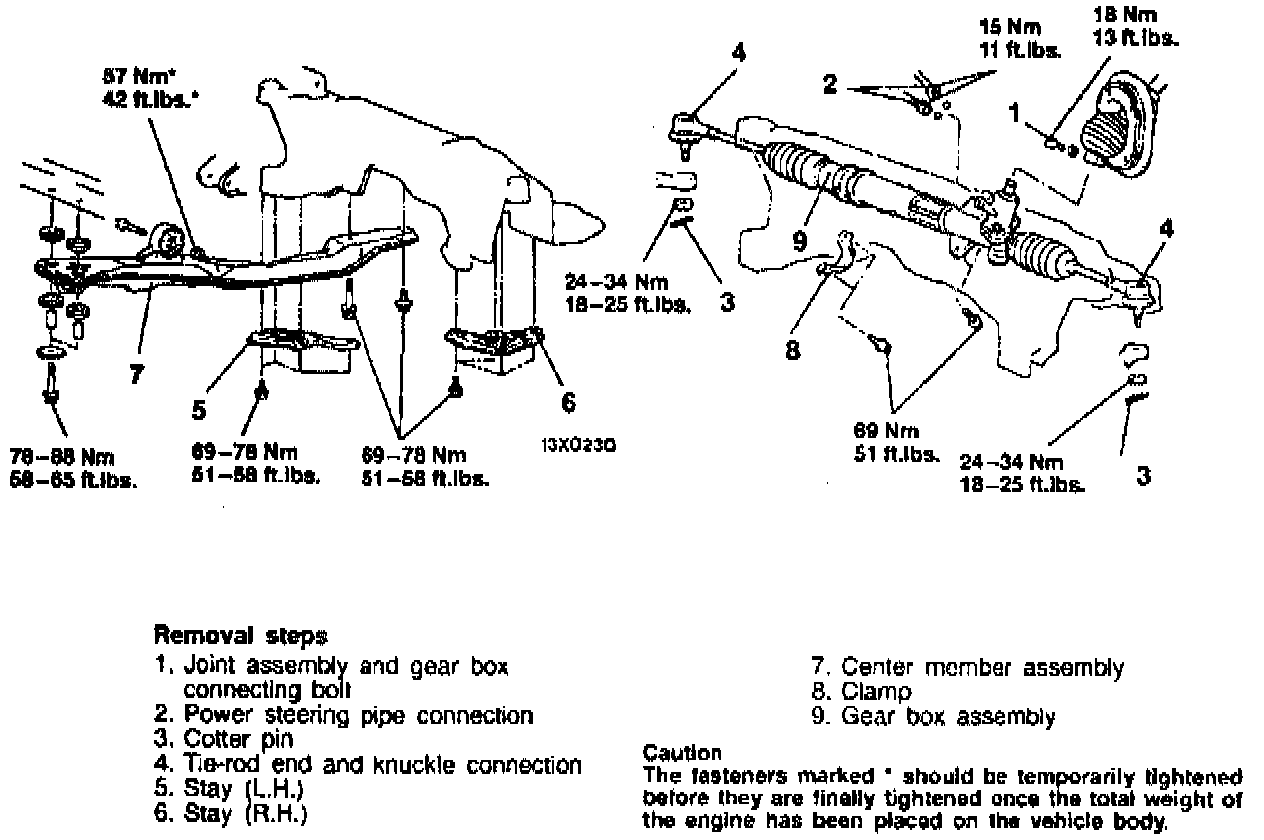

Fig. 9 Center Member & Power Steering Gear Replacement:

1. Drain power steering fluid.
2. Remove stabilizer bar as described under "Stabilizer Bar, Replace".
3. Remove windshield washer reservoir.
4. Remove steering gear as shown.
5. Reverse procedure to install, noting the following:
a. Tighten bolts to specifications.
b. Add power steering fluid and bleed system as described under "Power Steering System Bleed".
