Starter Motor: Service and Repair

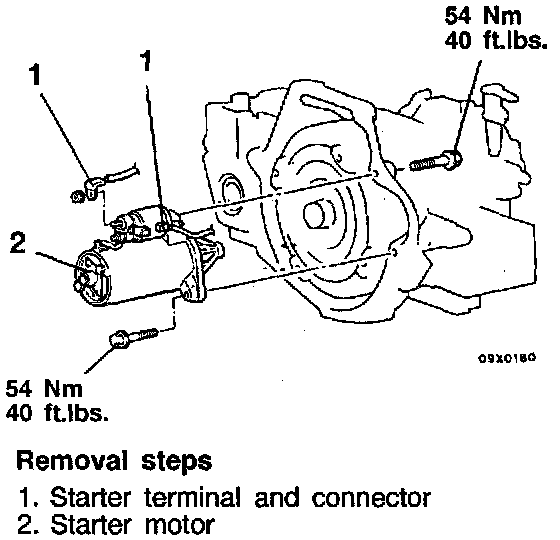

Starter Motor - Removal And Installation:

Pre-Removal
- Front exhaust pipe


REMOVE
1. Starter terminal and connector.
2. Starter motor.

INSTALL
1. Starter motor.
2. Starter terminal and connector.

Post-Installation
- Front exhaust pipe
