Electrical Diagrams

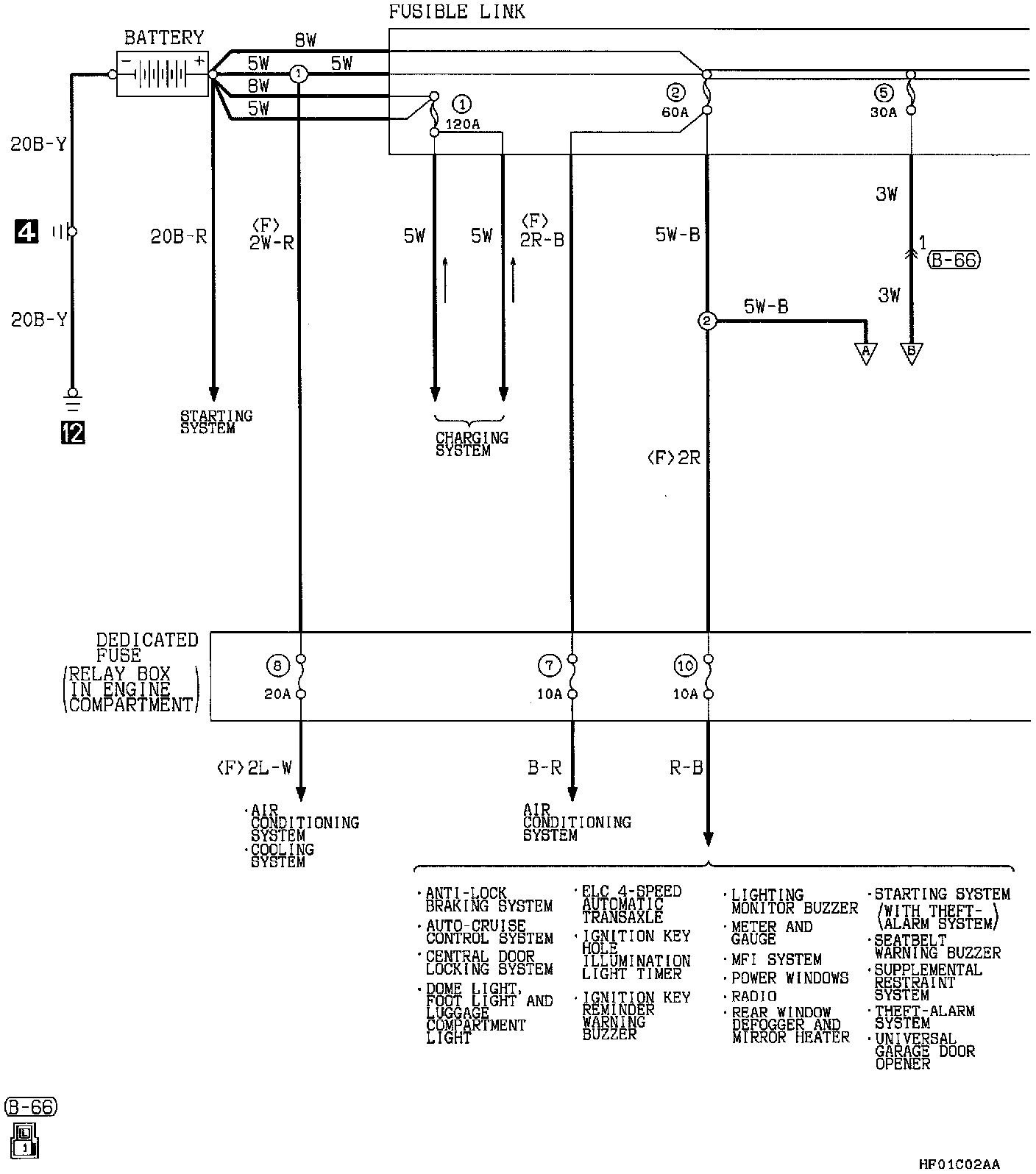

Power Distribution System (Part 1 Of 5):

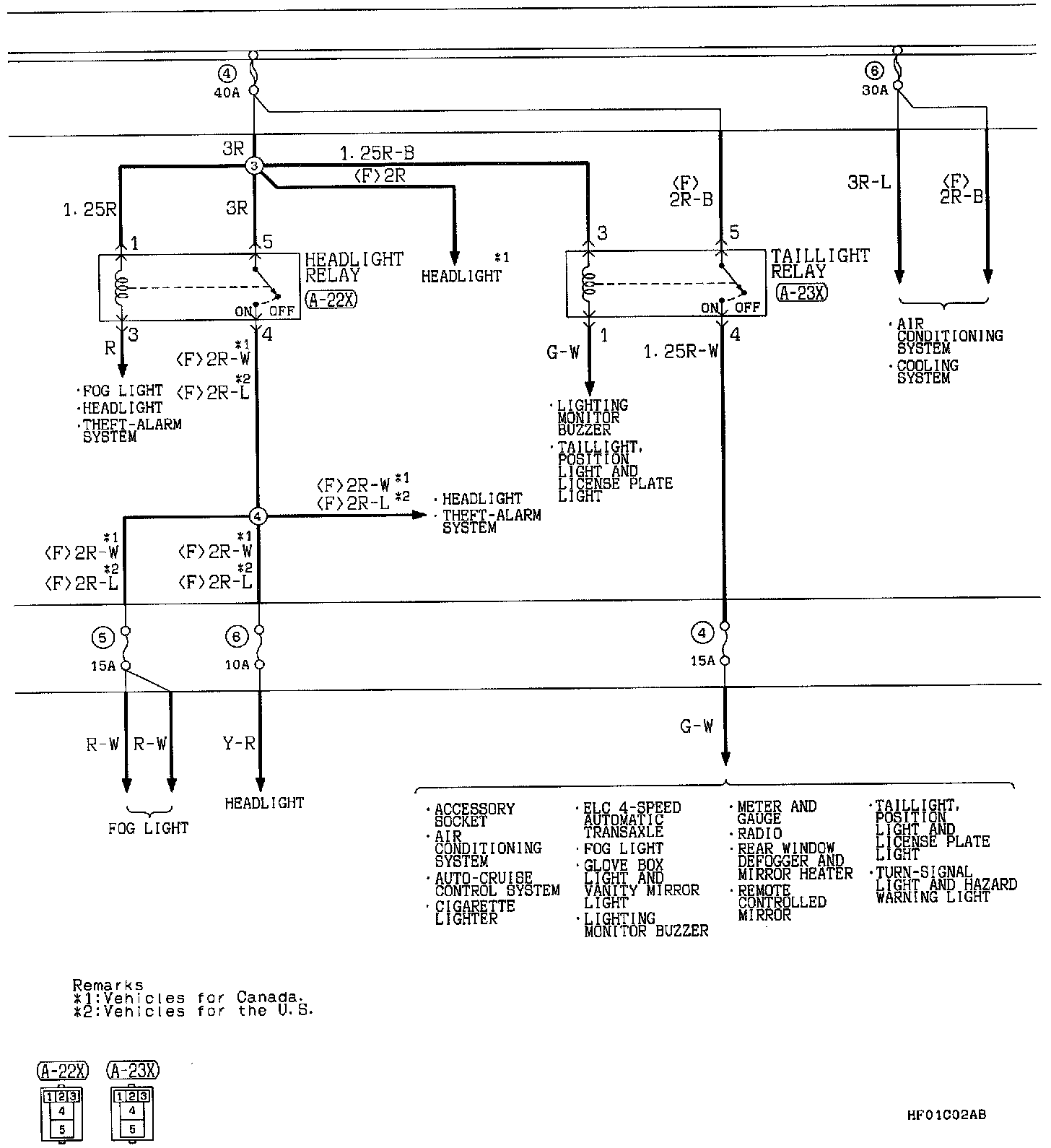

Power Distribution System (Part 2 Of 5):

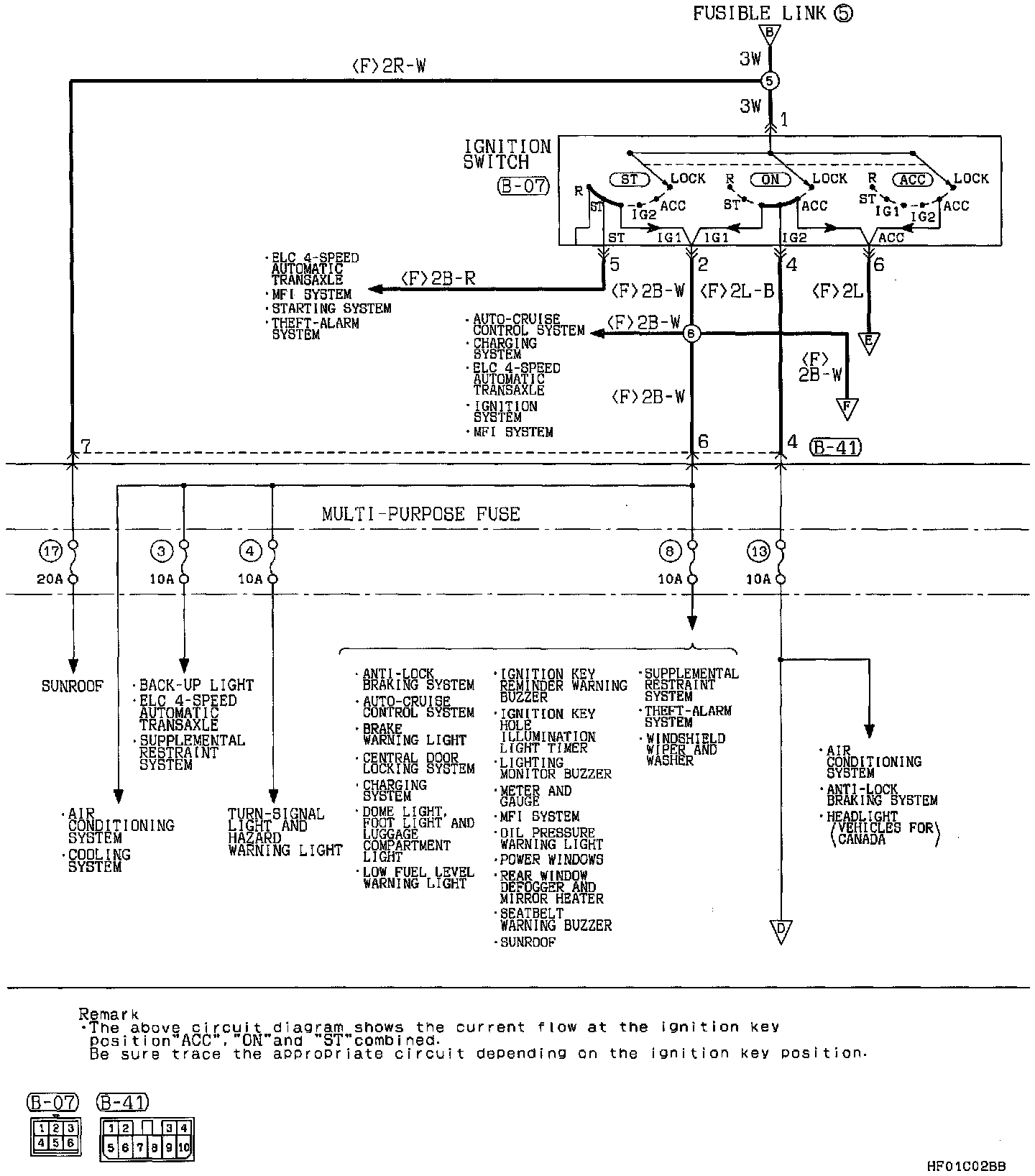

Power Distribution System (Part 3 Of 5):

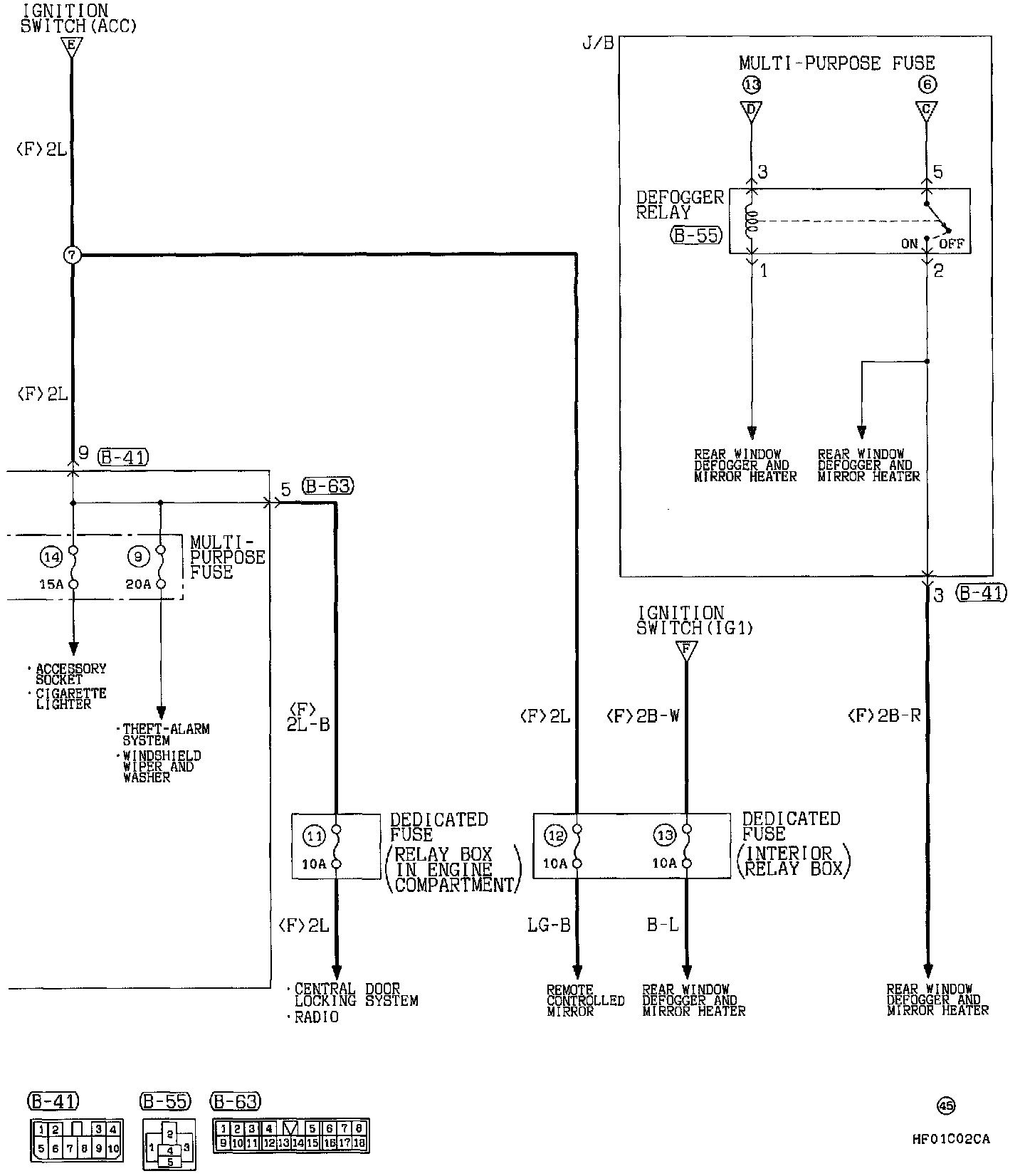

Power Distribution System (Part 4 Of 5):

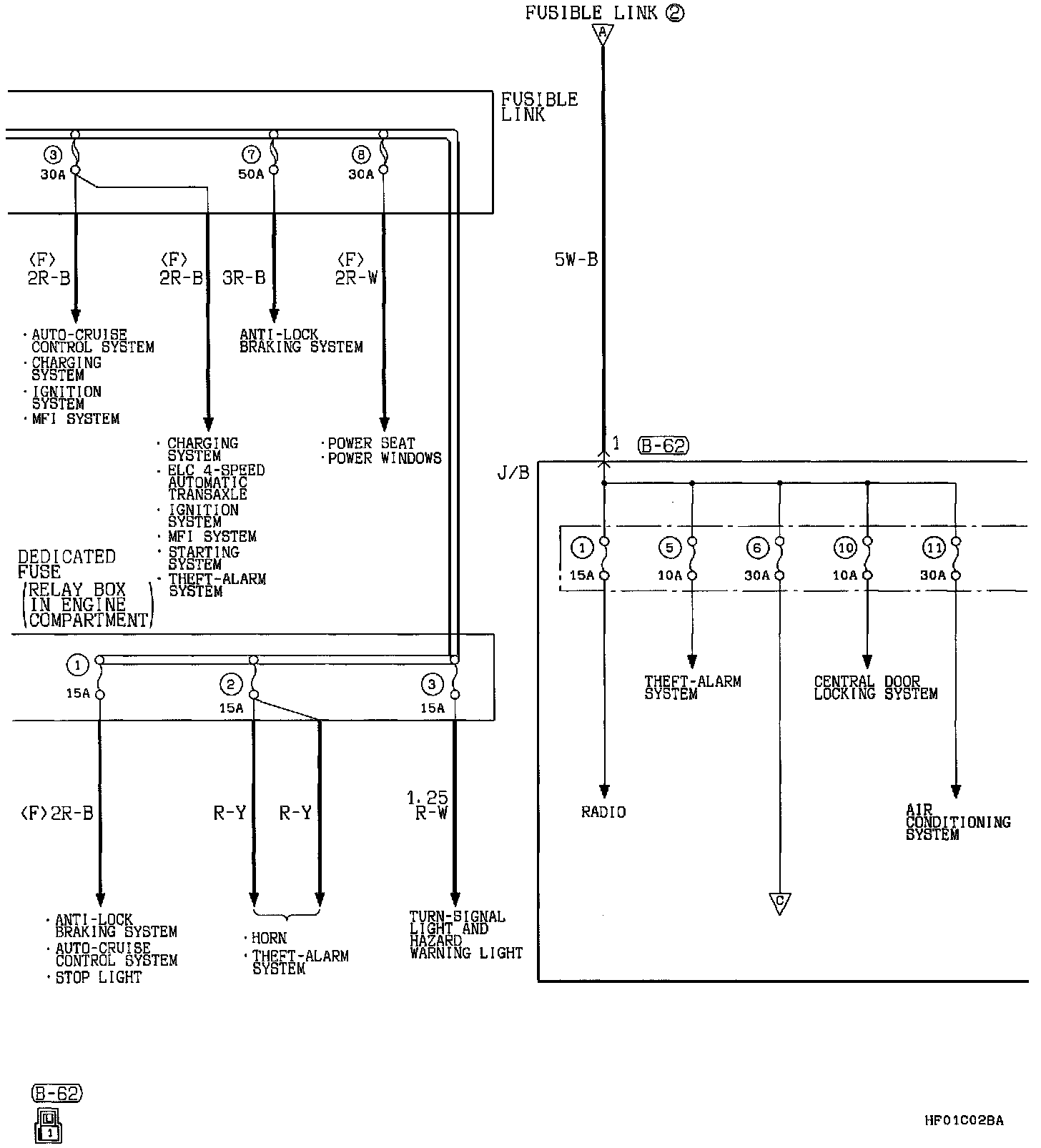

Power Distribution System (Part 5 Of 5):
