Washer Fluid Level Switch: Testing and Inspection

Washer Fluid Level Switch:

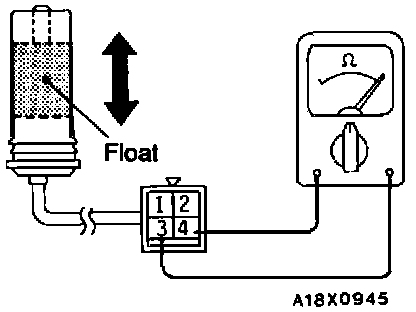

1. Connect an ohmmeter to the connector of the level switch as shown.
2. Check a continuity. There should be continuity when the float is moved down and there should not be continuity when the float is moved up.
