Home >> Chrysler >> 1996 >> Sebring L4-2.0L DOHC >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Starting and Charging >> Neutral Safety Switch >> Locations

Neutral Safety Switch: Locations

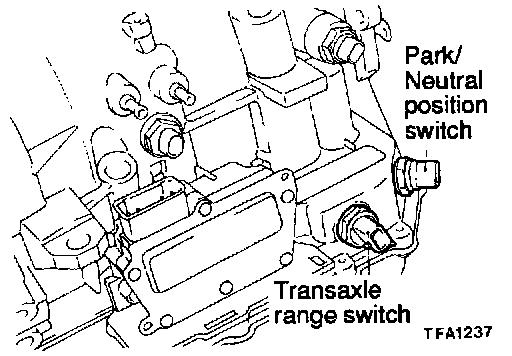

Park/Neutral Position Switch, Transaxle Range Switch:
