Turn Signal Switch: Testing and Inspection

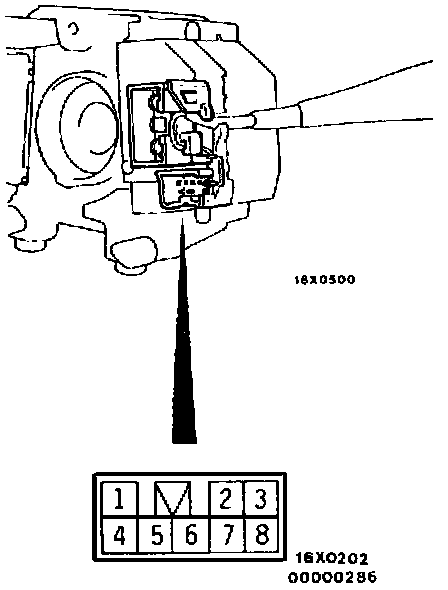

Column Switch Continuity Check:

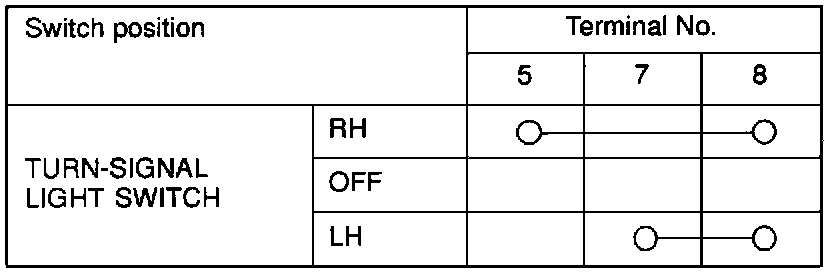

Column Switch Continuity Check Table:
