Removal And Installation Steps

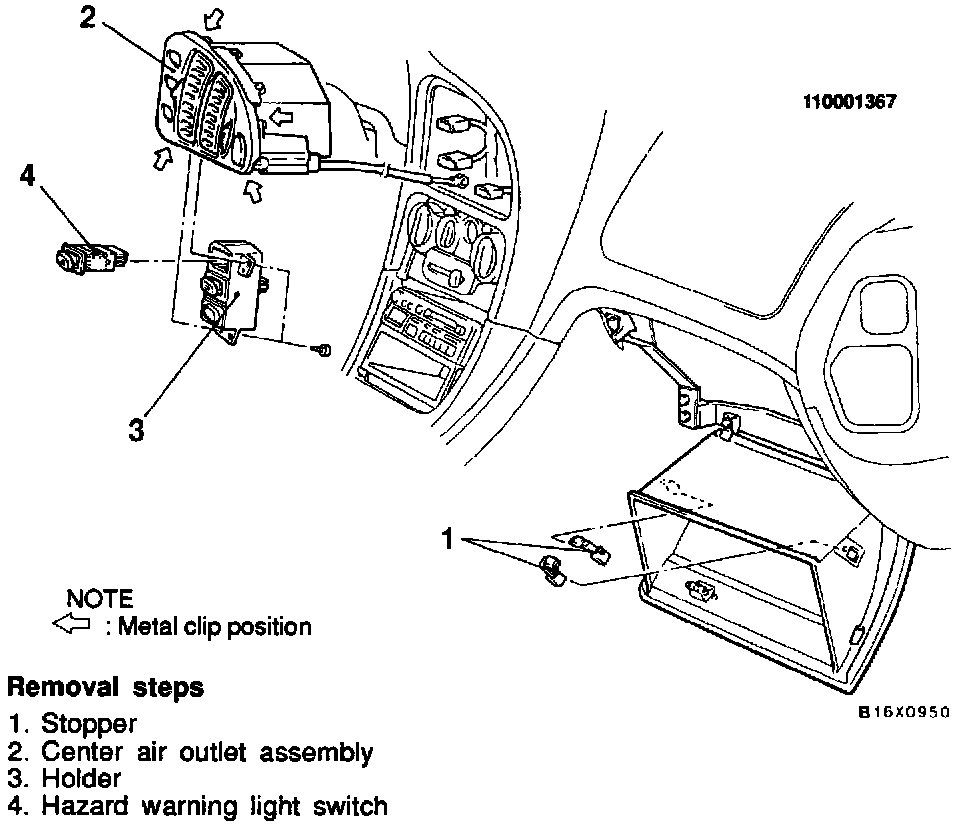

Hazard Warning Light Switch - Removal And Installation:





REMOVE
1. Stopper
2. Center air cutlet assembly
3. Holder
4. Hazard warning light switch

INSTALL
1. Hazard warning light switch
2. Holder
3. Center air cutlet assembly
4. Stopper
