Blower Motor Switch: Testing and Inspection

Blower Continuity Switch Check:

Blower Continuity Switch Check:

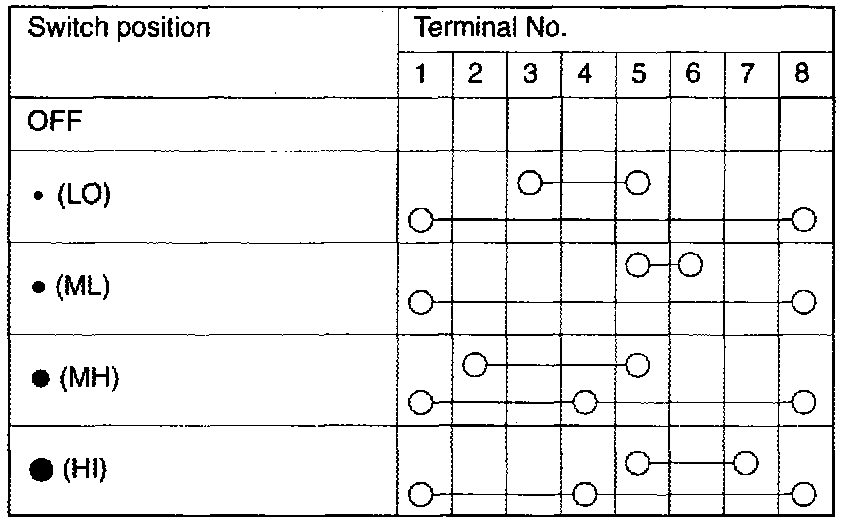

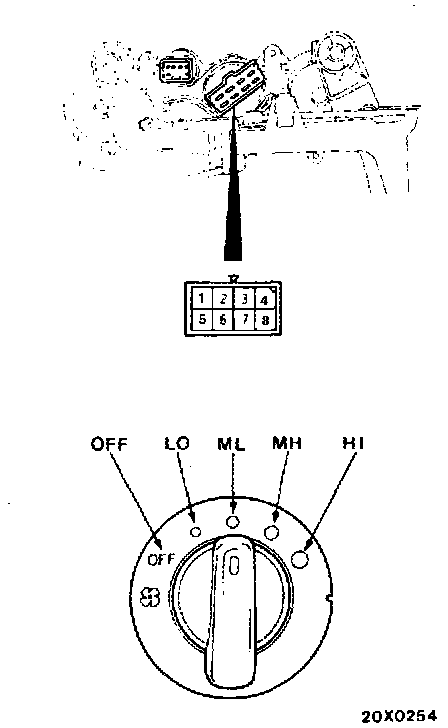

Test as shown in image and verify continuity is as shown in chart.
