Power Mirror Switch: Testing and Inspection

DOOR MIRROR CONTROL SWITCH CONTINUITY CHECK

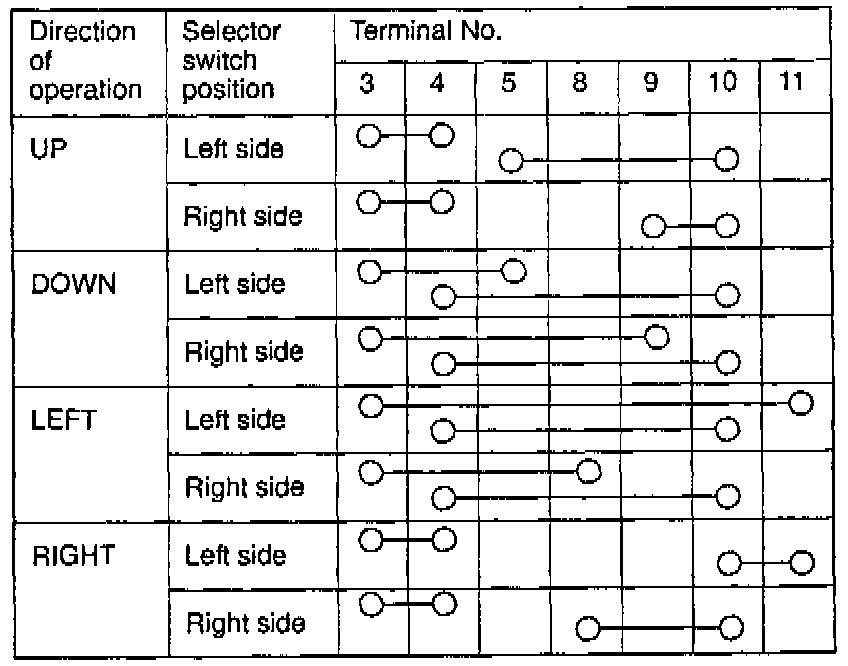

Check the continuity of the door mirror switch according to the chart above and replace the switch if it does not operate properly.
