Seat Belt: Service and Repair

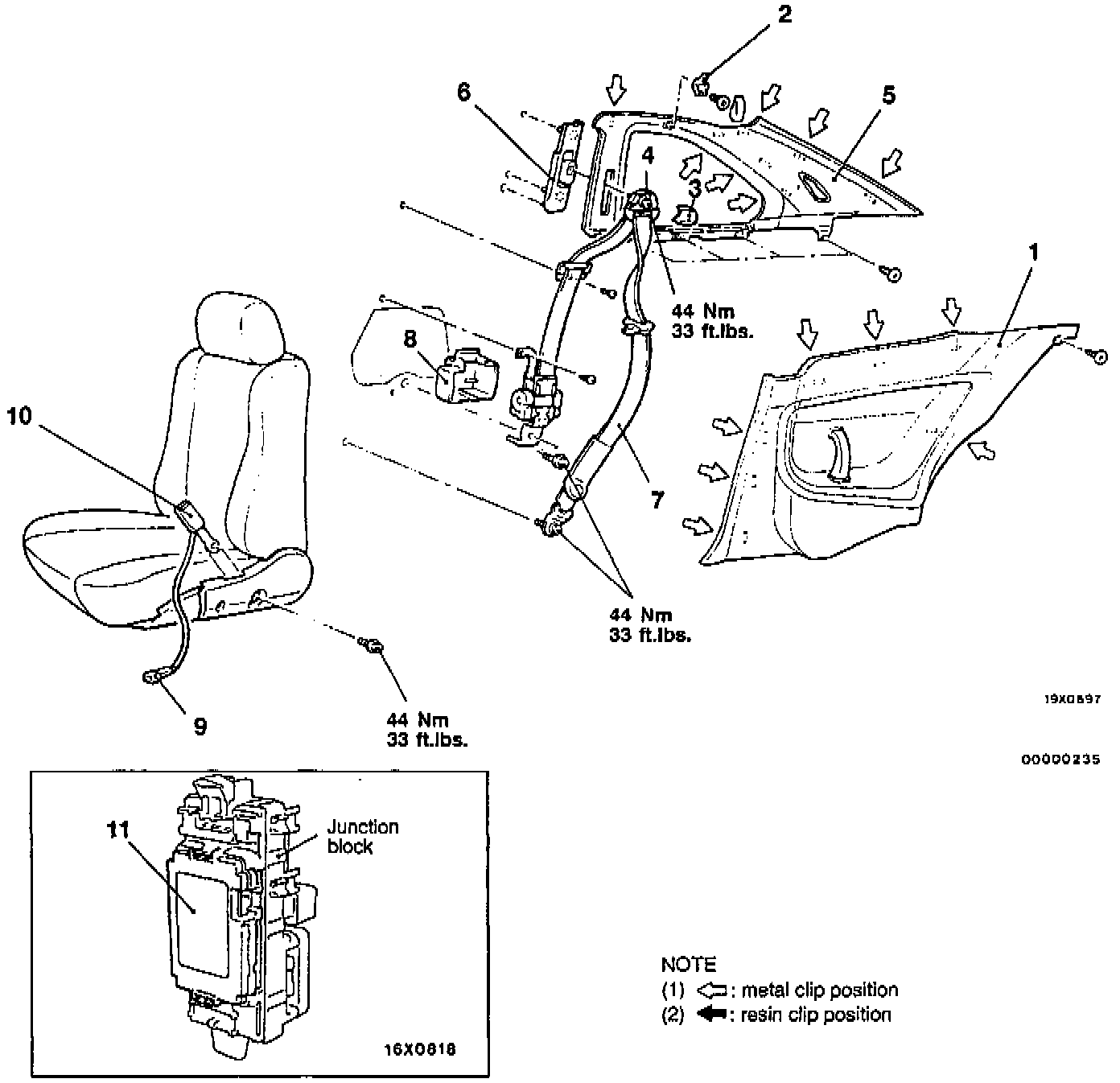

FRONT OUTER SEAT BELT REMOVAL STEPS
^ Rear seat side back
1. Quarter trim, lower
2. Coat hangar
3. Front seat belt sash guide cover
4. Front seat belt anchor plate
5. Quarter trim, upper
6. Adjustable seat belt anchor
7. Front outer seat belt
8. Seat belt retractor cover

FRONT INNER SEAT BELT REMOVAL STEPS
^ Front seat assembly
9. Harness connector (driver's side)
10. Front inner seat belt

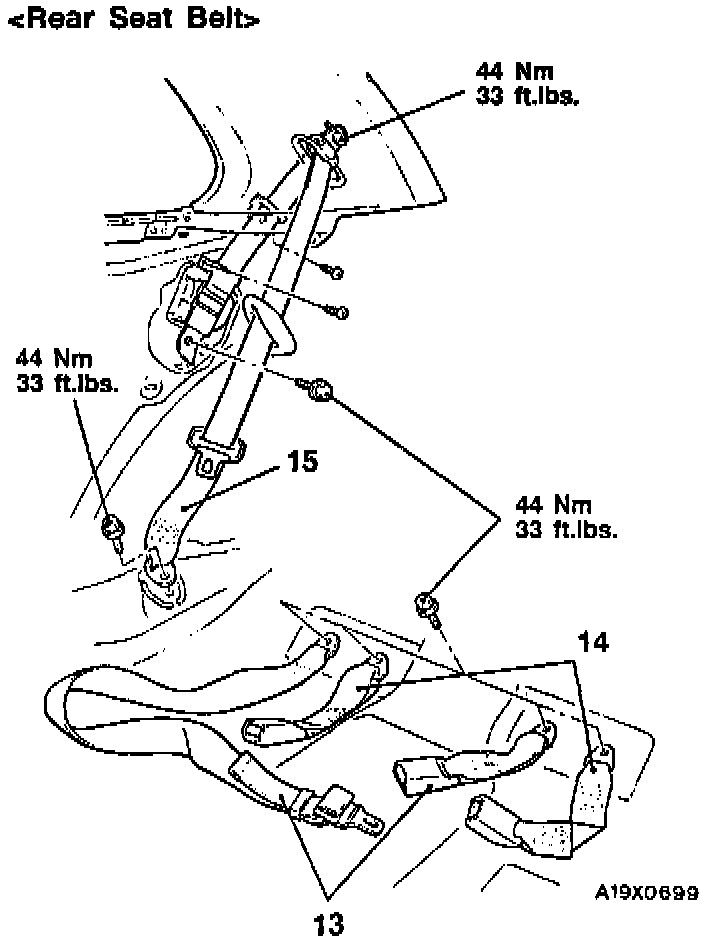

REAR SEAT BELT REMOVAL STEPS
^ Rear seat cushion
13. Rear center seat belt
14. Rear inner seat belt
^ Quarter trim, upper
15. Rear outer seat belt

INSTALLATION SERVICE POINTS





Rear Outer Seat Belt Installation

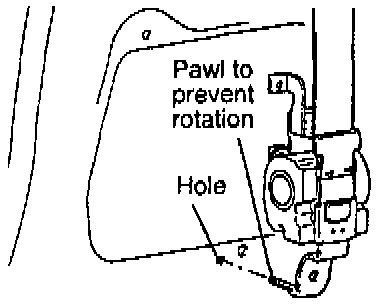

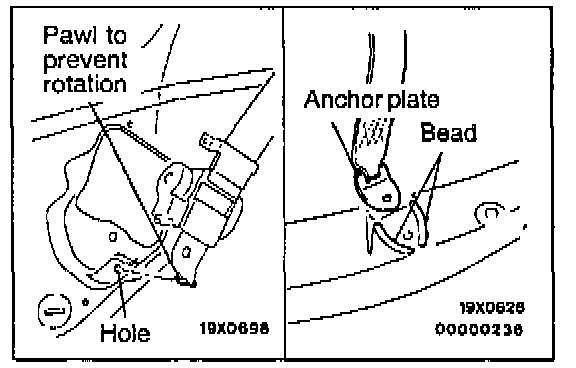

1. Insert the pawl to prevent the retractor from rotating in the hole on the body.
2. Install the anchor plate along the bead of the body.





Front Outer Seat Belt Installation
Insert the pawl to prevent the retractor from rotating in the hole on the body.
