Compressor Clutch Relay: Testing and Inspection

Power Relay Check:




Power Relay Check:

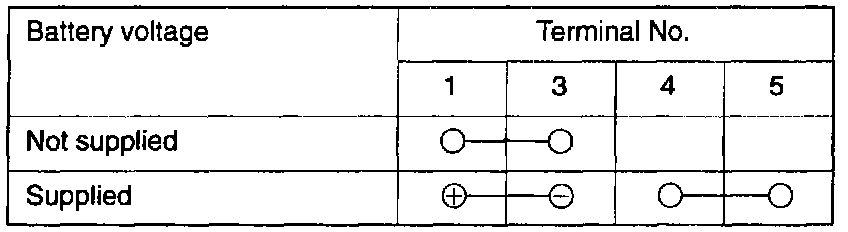

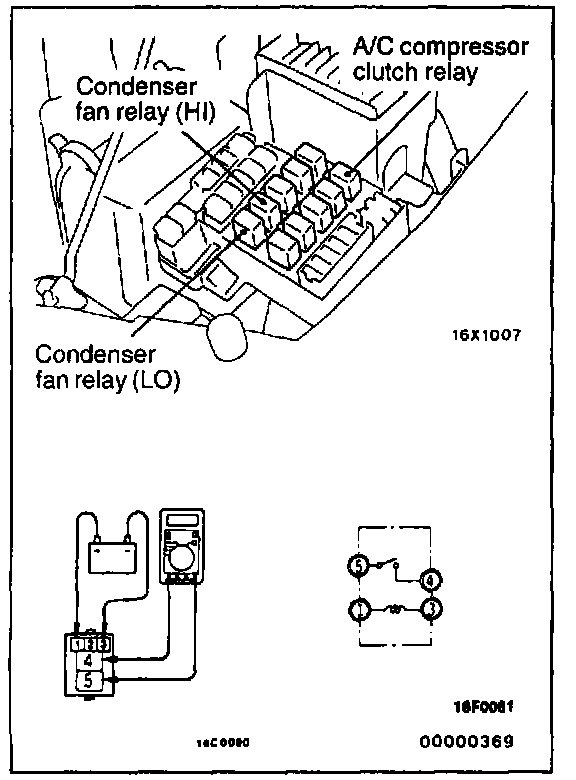

Test relay as shown in image and verify relay continuity is as described in chart.
