Blower Motor Relay: Testing and Inspection

Blower Motor Relay:




Power Relay Check:

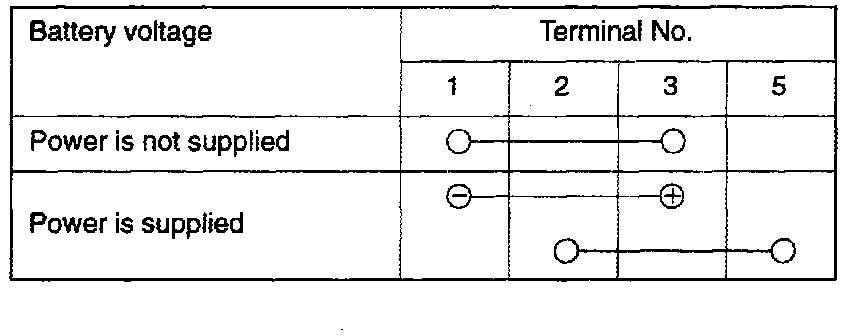

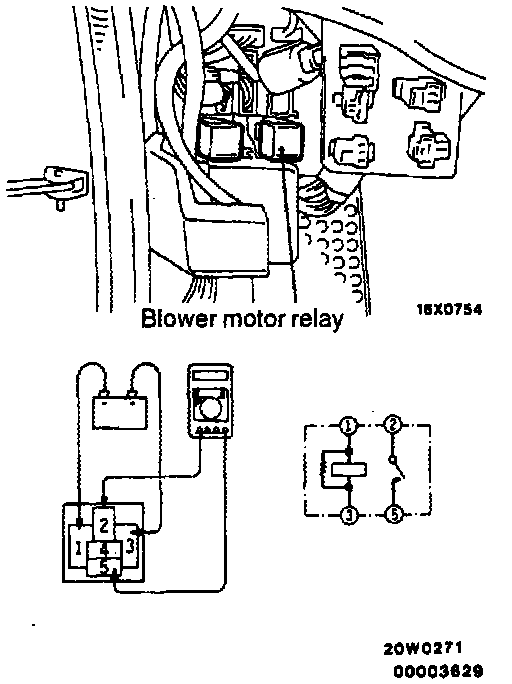

Test relay as shown in image and verify relay continuity is as described in chart.
