Pinout Values and Diagnostic Parameters

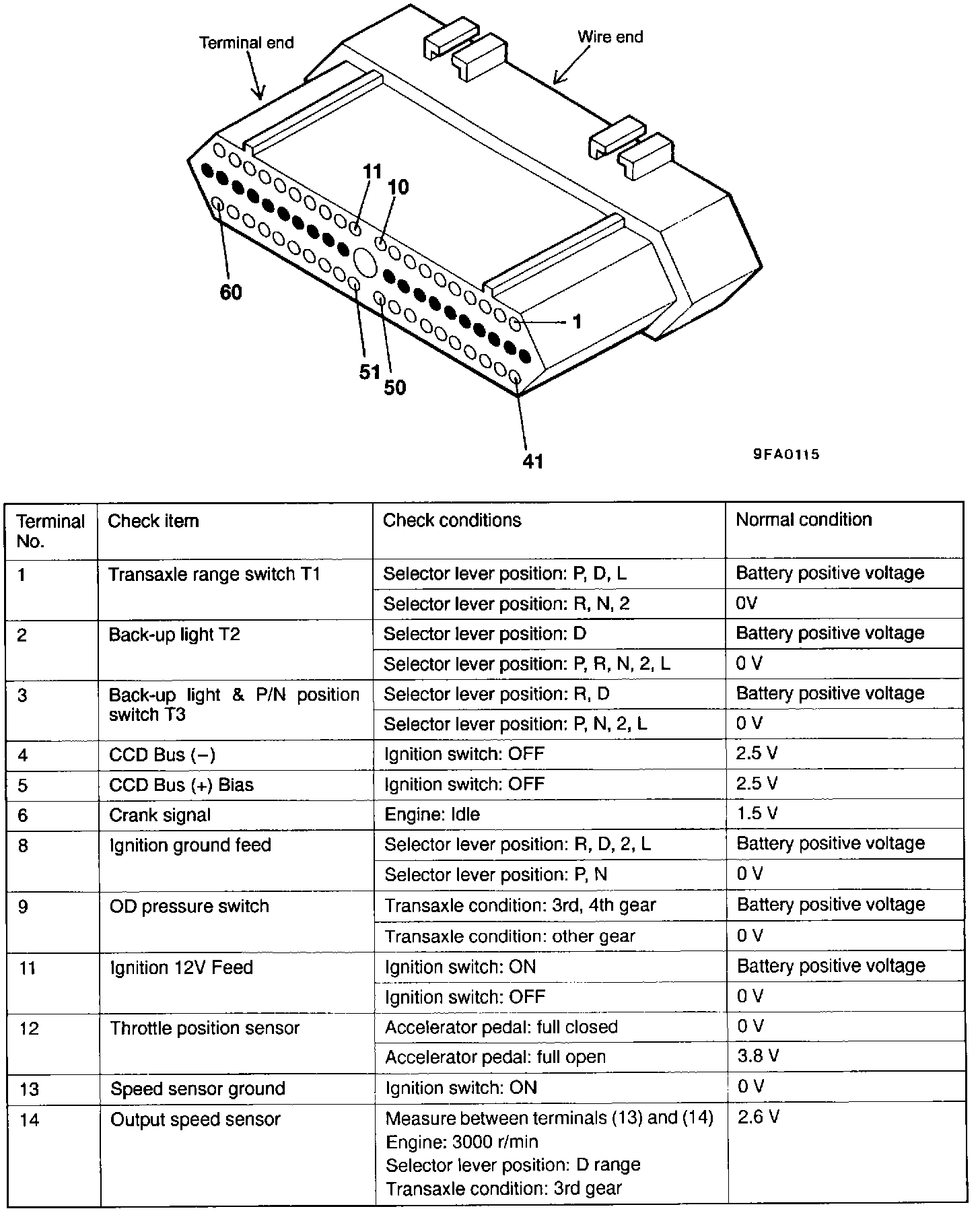

TCM Terminal Voltage Checks (Part 1 Of 2):

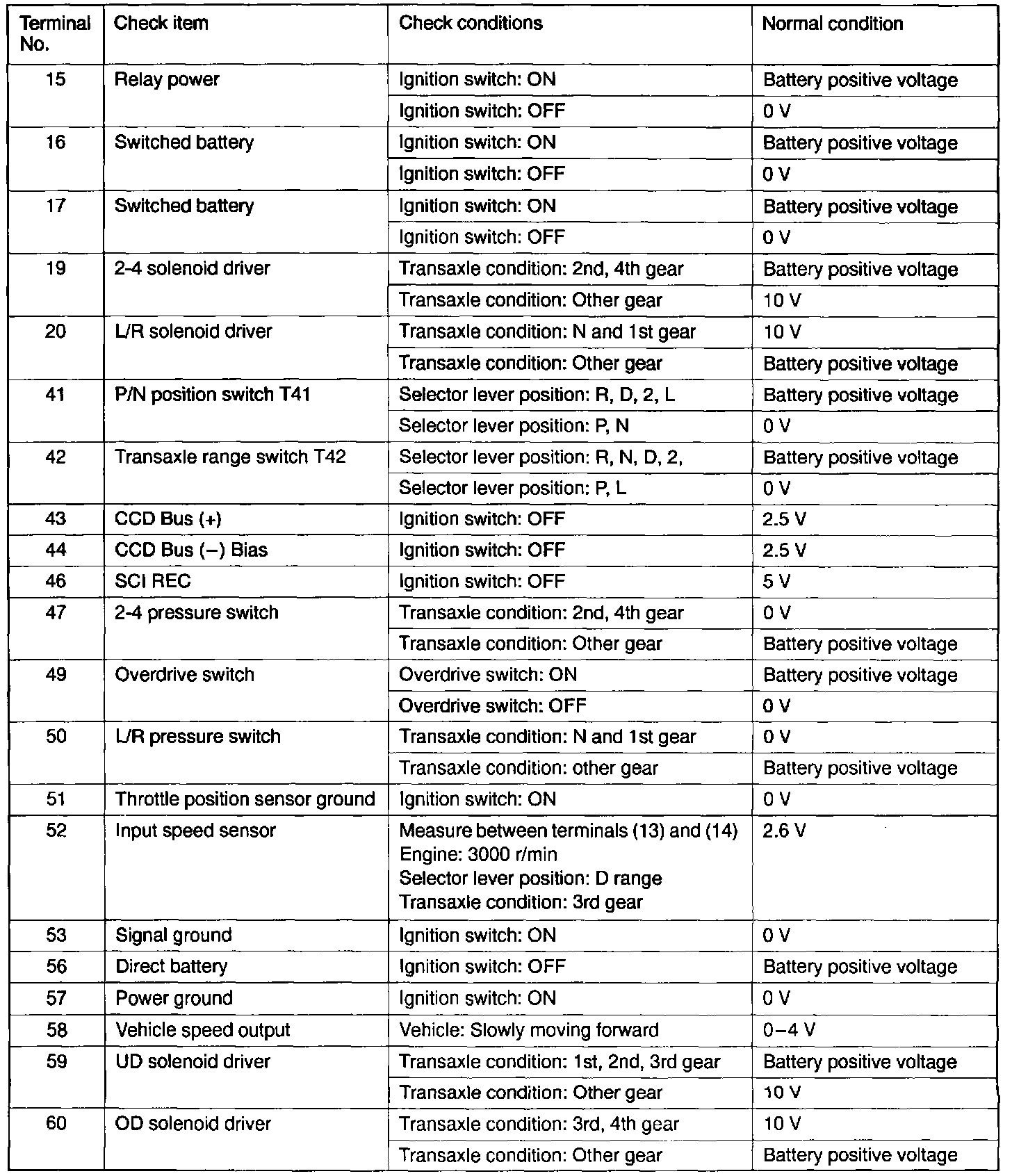

TCM Terminal Voltage Checks (Part 2 Of 2):
