Transmission Range Sensor/Switch Inspection Procedures
>>
Inspection 8 Back-Up & Park/Neutral Switch B Closed Circuit
Inspection 8 Back-Up & Park/Neutral Switch B Closed Circuit

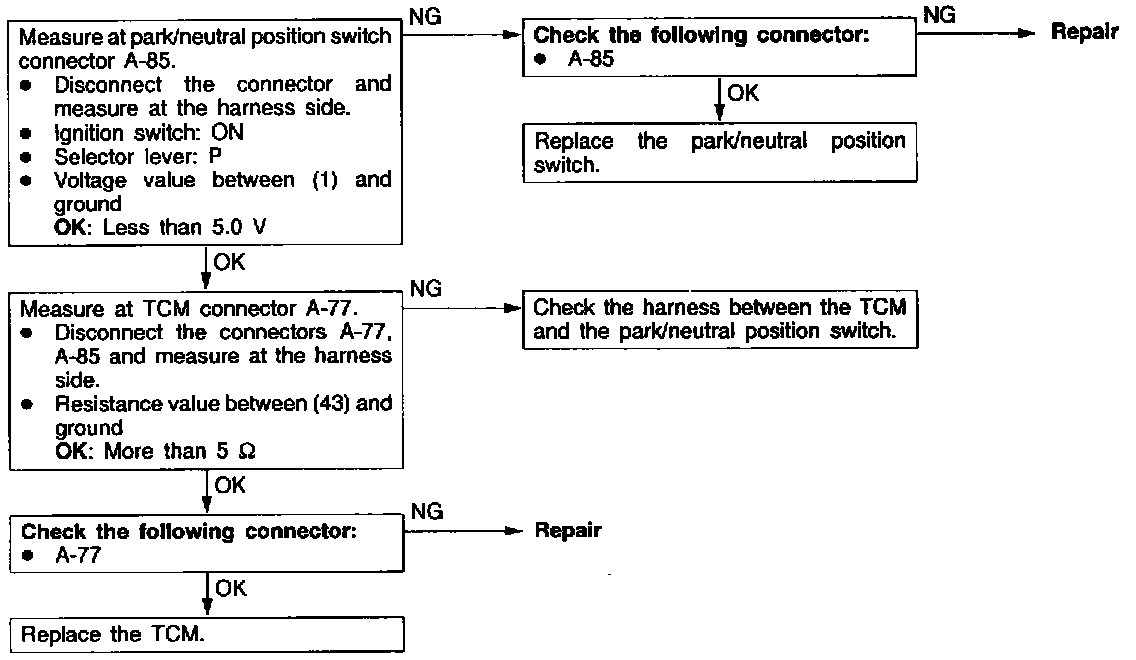

Inspection Procedure 8:
