Transmission Range Sensor/Switch Inspection Procedures
>>
Inspection 7 Back-Up & Park/Neutral Switch B Open Circuit
Inspection 7 Back-Up & Park/Neutral Switch B Open Circuit

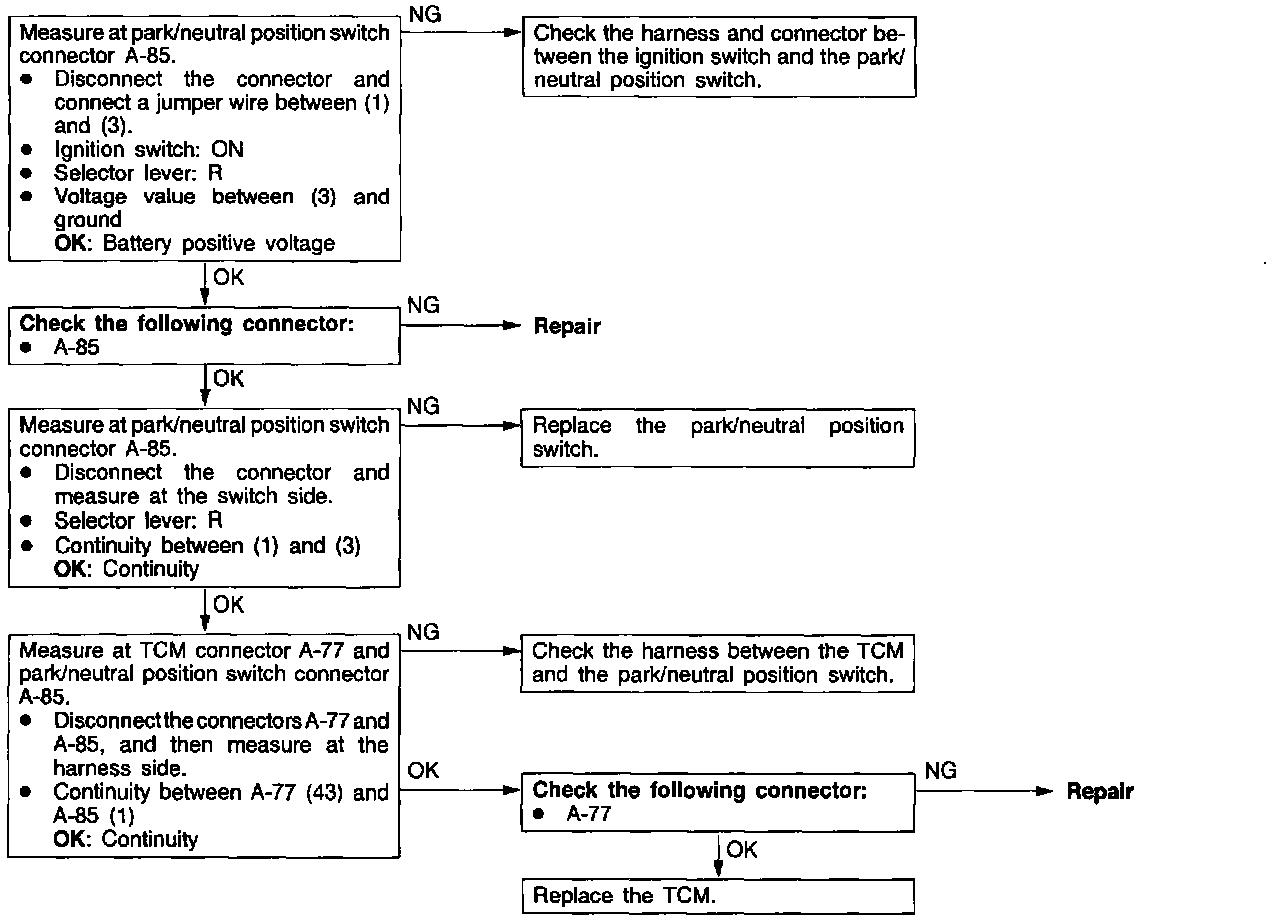

Inspection Procedure 7:
