FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1996
>>
Sebring L4-2.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Transmission Range Sensor/Switch Inspection Procedures
>>

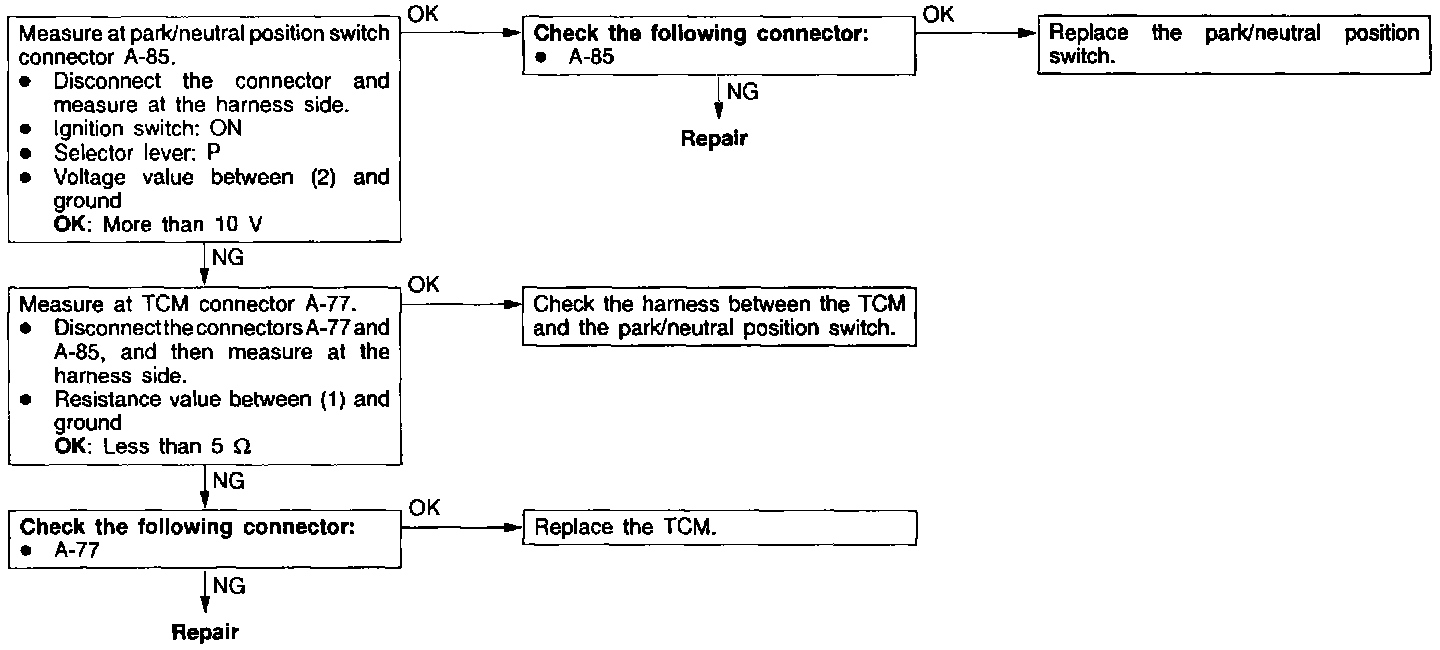

Inspection 4 Park/Neutral Switch A Sensing Closed Circuit
Inspection 4 Park/Neutral Switch A Sensing Closed Circuit
Inspection Procedure 4:
