Inspection 3 Park/Neutral Switch A Sensing Open Circuit
Inspection 3 Park/Neutral Switch A Sensing Open Circuit

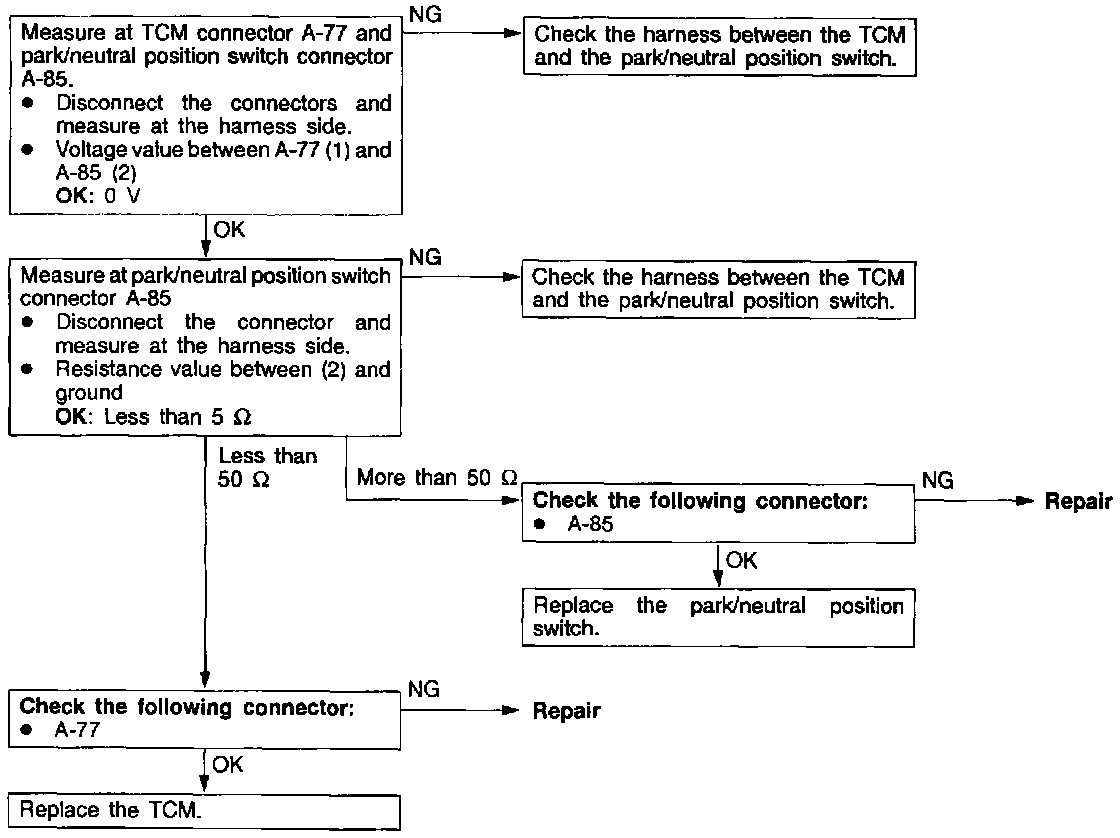

Inspection Procedure 3:
