Transmission Range Sensor/Switch Inspection Procedures
>>
Inspection 2 Transaxle Range Switch A Sensing Closed Circuit
Inspection 2 Transaxle Range Switch A Sensing Closed Circuit

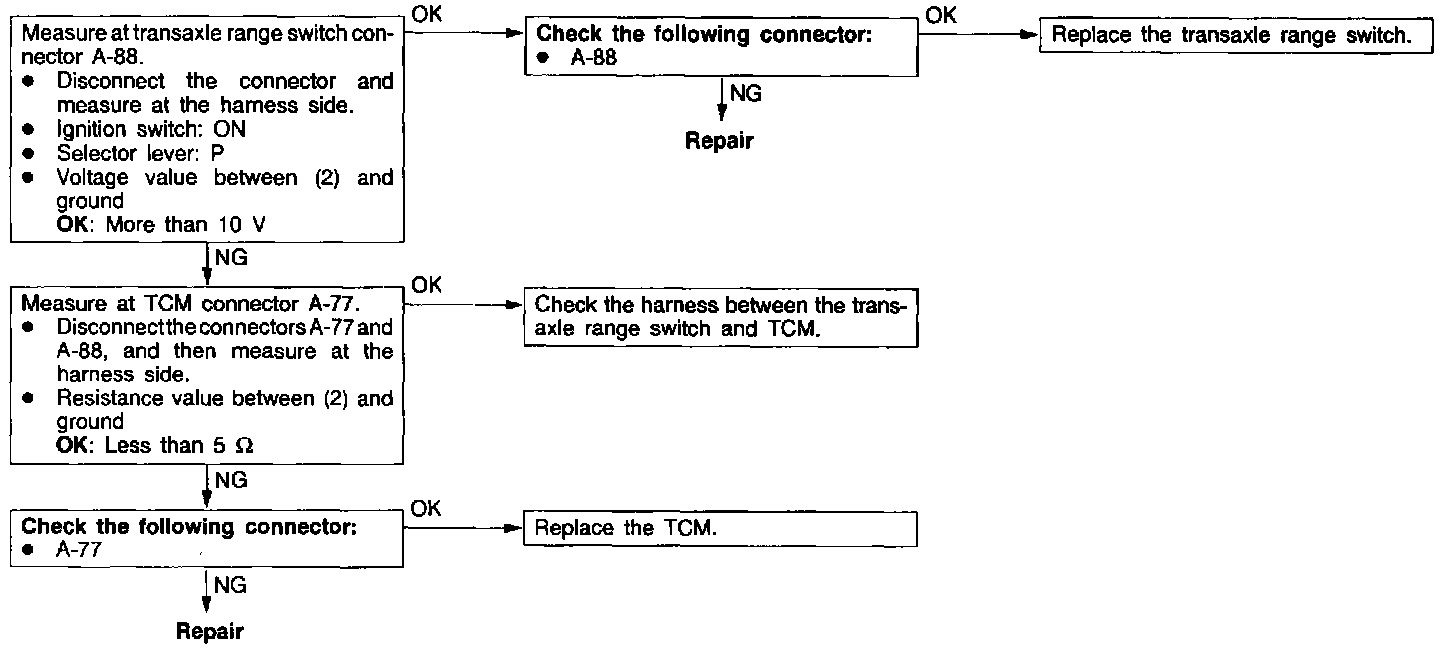

Inspection Procedure 2:
