Removal And Installation Steps

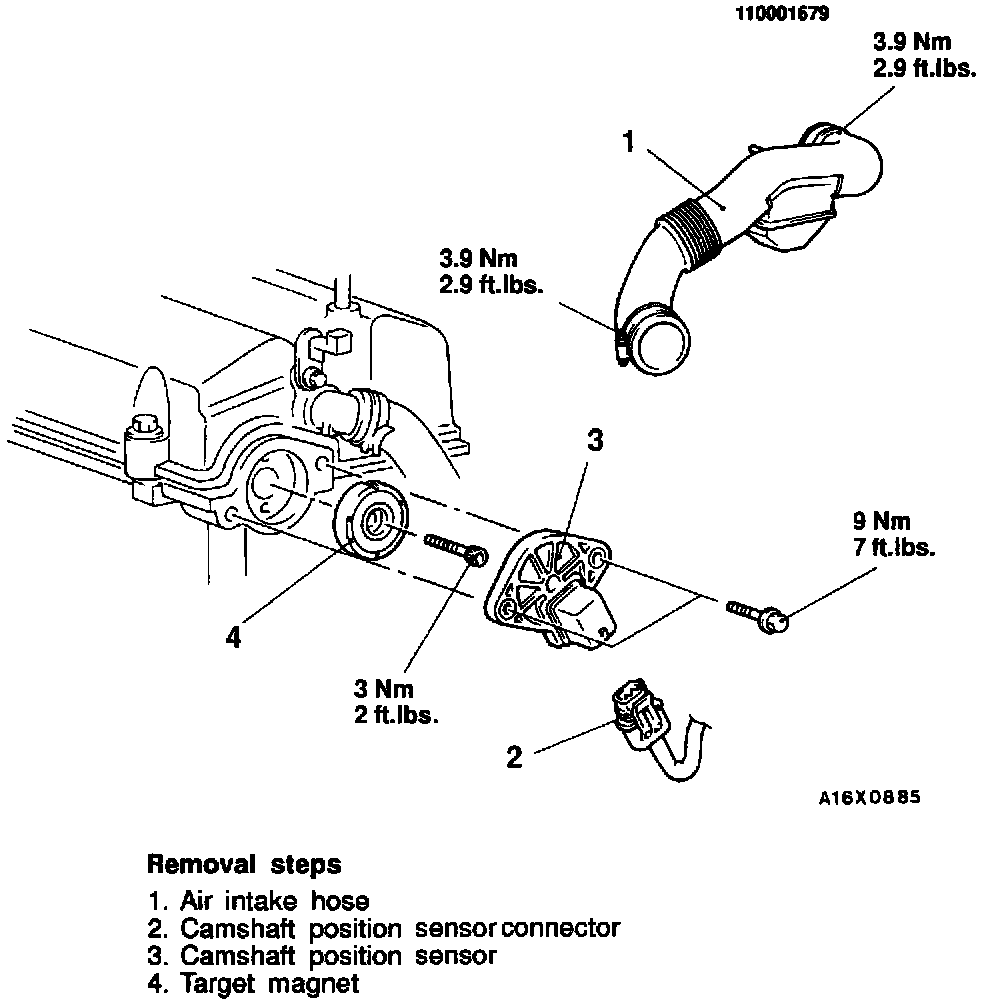

Camshaft Position Sensor - Removal And Installation:

REMOVE
1. Air intake hose.
2. Camshaft position sensor connector.
3. Camshaft position sensor.
4. Target magnet.

INSTALL
1. Target magnet.
2. Camshaft position sensor.
3. Camshaft position sensor connector.
4. Air intake hose.
