Installation Service Point

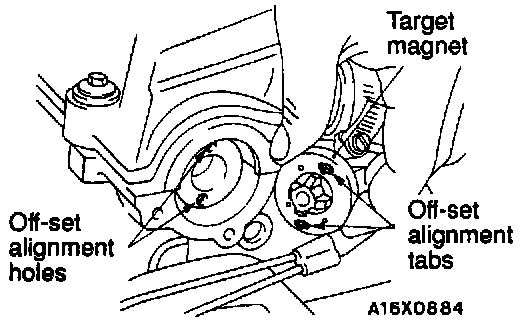

Target Magnet Installation:





To install the target magnet, align the off-set tabs of the magnet with the off-set holes of the camshaft.
