Secondary Coil Resistance

Secondary Coil Resistance:

1. Remove spark plug cables from the secondary towers of the coil.

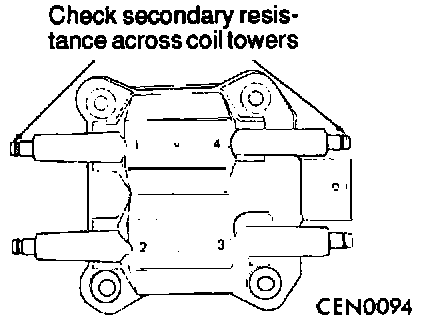

2. Measure the secondary resistance of the coil between the towers of each individual coil.
Standard value: 11.5 - 13.5 K-Ohms
3. Replace the coil pack if resistance is not within the standard value.
