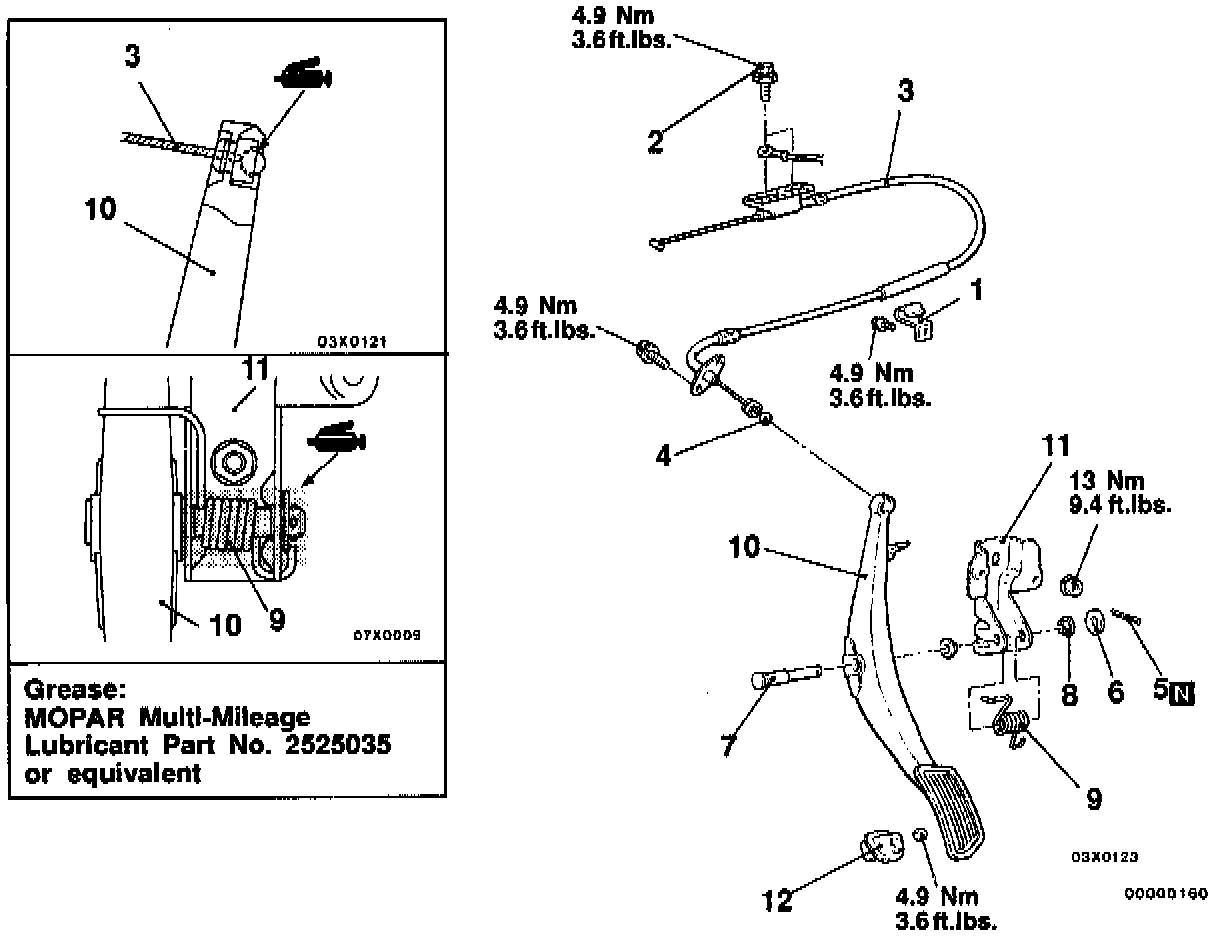

Throttle Cable/Linkage: Service and Repair






1. Remove clip
2. Remove adjusting bolts
3. Remove accelerator cable
4. Reverse procedure to install
5. Adjust cable
