Replacement

Throttle Body:

Pre-removal Operation
Disconnect & remove battery

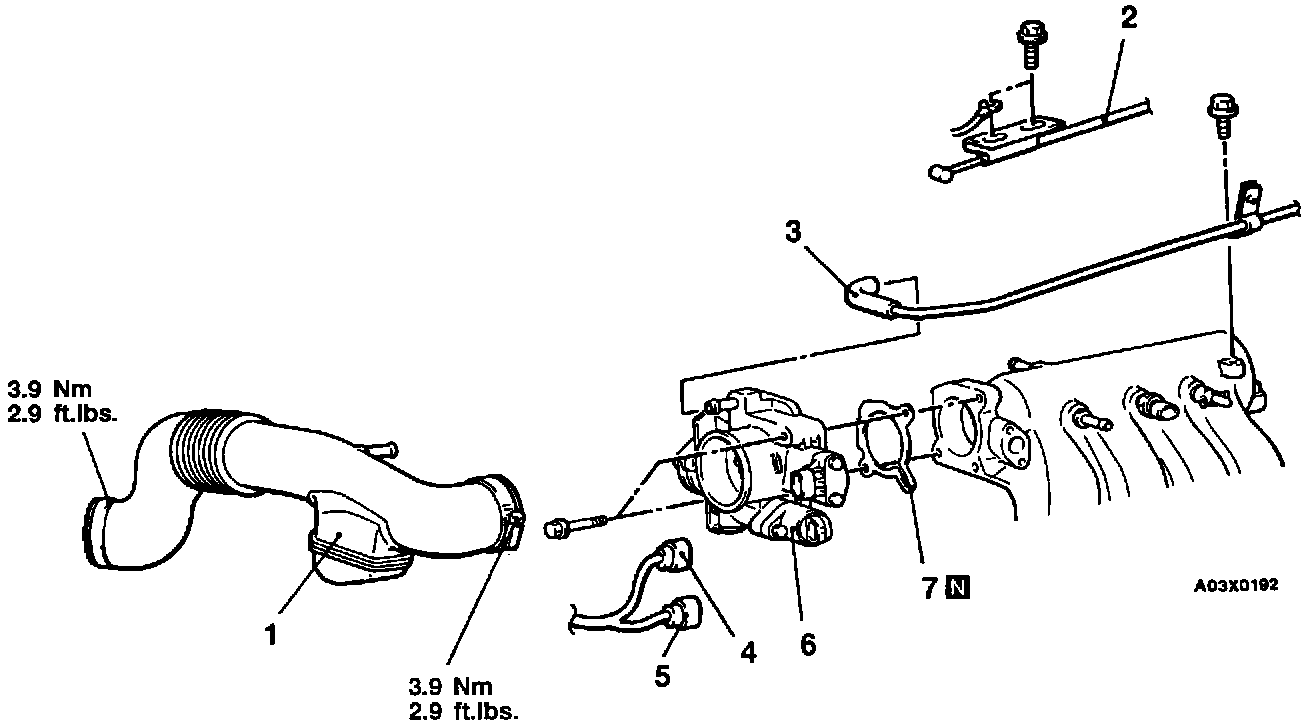

Removal
1. Air intake hose
2. Accelerator cable connection
3. Vacuum hose connection
4. TPS connector
5. AIS motor connector
6. Throttle body
7. Throttle body gasket

Post-installation Operation
- Install battery
- Adjust accelerator cable
