Fuel Tank: Service and Repair

PRE-REMOVAL OPERATION
1. Fuel Draining
2. Reduce the Inner Pressure of Fuel Line and Hose.

NOTE: When replacing the fuel pump assembly or the fuel gauge unit only, it is possible to work from the service holes underneath the rear seat cushion without having to remove the fuel tank.

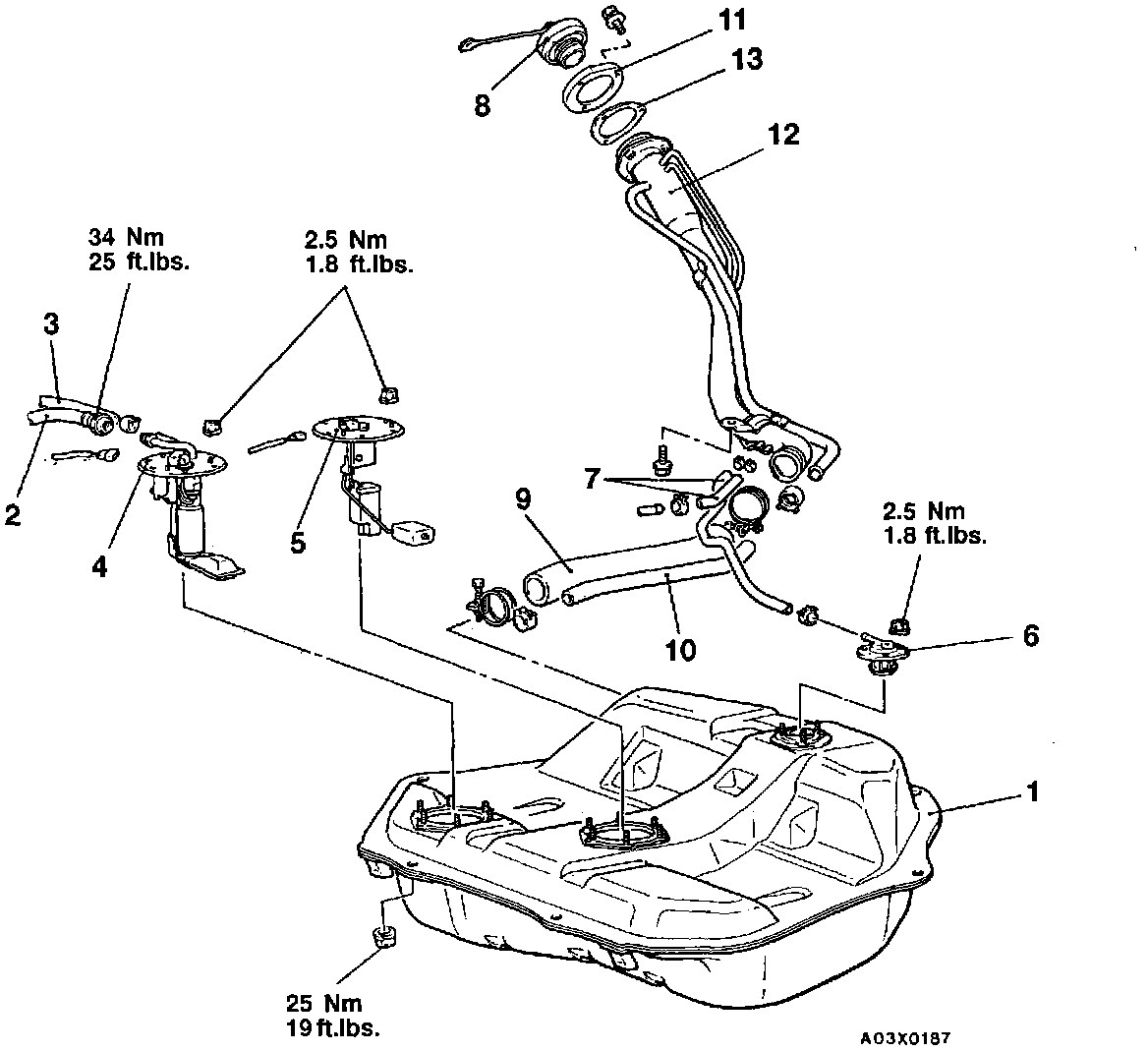

REMOVAL
1. Fuel tank
2. High-pressure fuel hose
3. Return hose
4. Fuel pump assembly
5. Fuel gauge unit
6. Fuel cut-off valve assembly
7. Vapor hose
8. Fuel tank filler tube cap
9. Filler hose
10. Vapor hose
11. Reinforcement
12. Fuel tank filler tube assembly
13. Packing

INSTALLATION
Reverse procedure to install.

POST-INSTALLATION OPERATION
1. Fuel Refilling
2. Check for fuel leaks.
