Evaporative Emission Control Canister: Service and Repair

Vapor Canister And Purge Solenoid Replacement:

NOTE: Prior to removal remove right hand splash shield

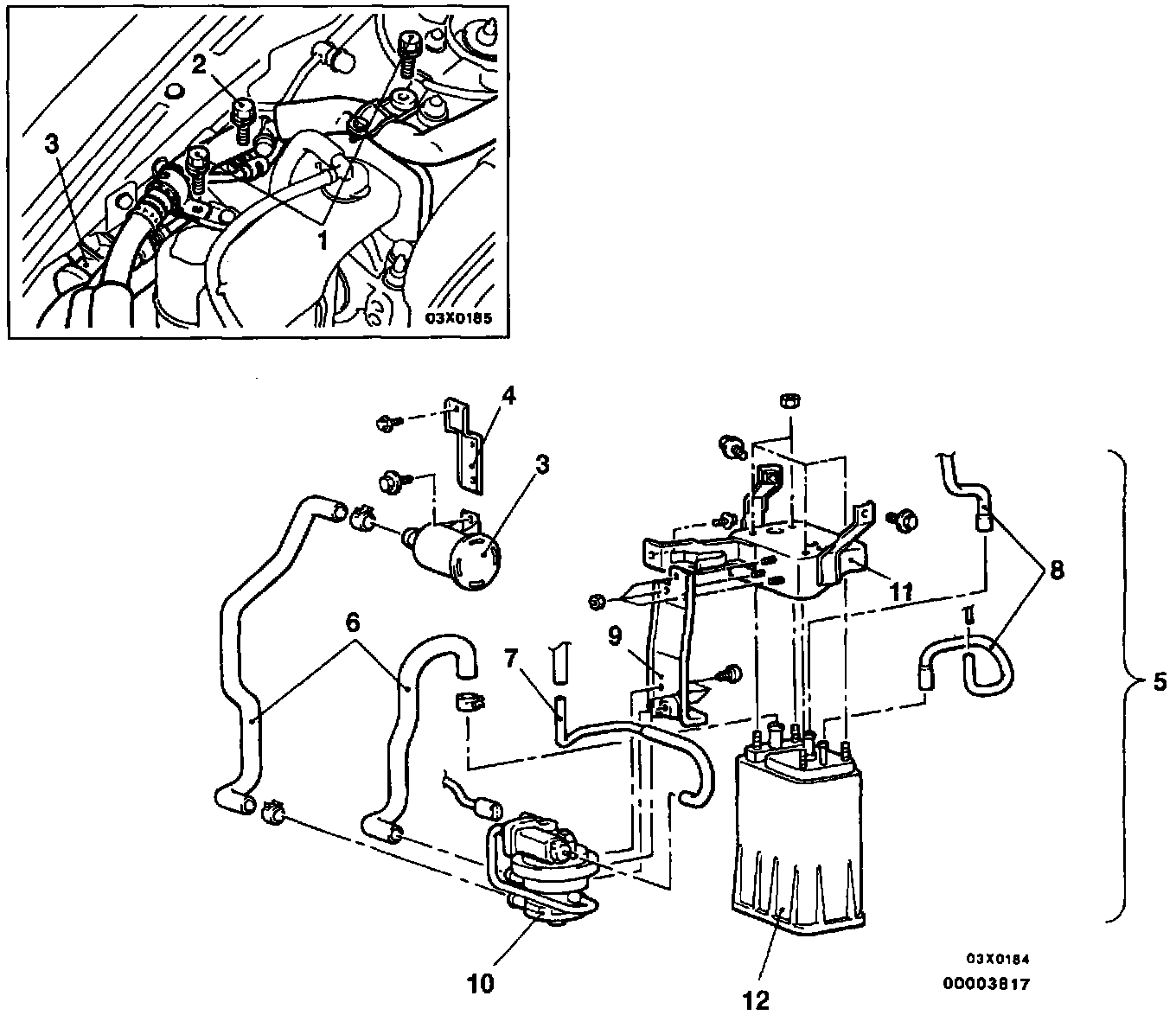

REMOVAL AND INSTALLATION
1. Suction hose fixing bolts
2. Pressure tube fixing bolt
3. Air filter
4. Air filter bracket
5. Evaporative emission canister and evaporative emission ventilation solenoid assembly
6. Vent hose
7. Vapor hose
8. Vapor hose
9. Evaporative emission ventilation solenoid bracket
10. Evaporative emission ventilation solenoid
11. Evaporative emission canister holder assembly
12. Evaporative emission canister assembly
13. Reverse procedure to install
