Catalytic Converter: Service and Repair
REMOVAL AND INSTALLATION
Pre-Removal Remove Under Cover

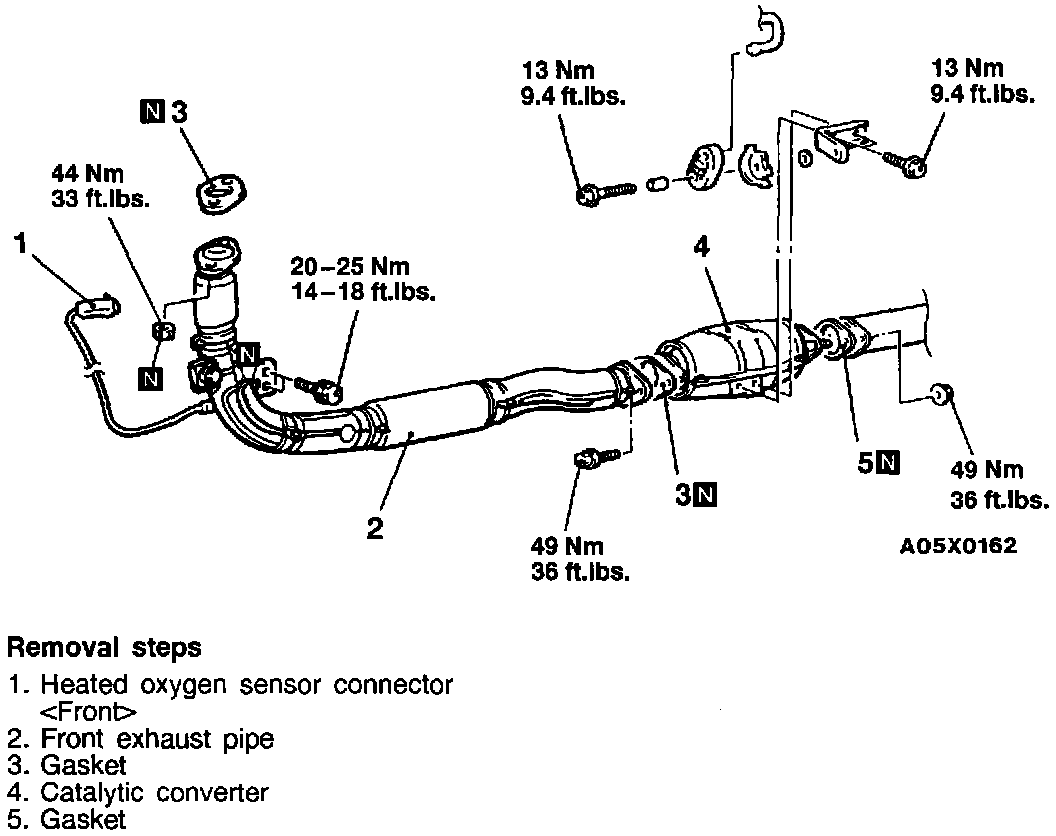

Removal Steps
1. Heated oxygen sensor connector
2. Front exhaust pipe
3. Gasket
4. Catalytic converter
5. Gasket
6. Reverse procedure to install
Post installation Install Under Cover
INSPECTION
Inspect for damage, cracking or deterioration.
- Replace the catalytic converter if obvious damage is found.
