43 Throttle Position Sensor Circuit

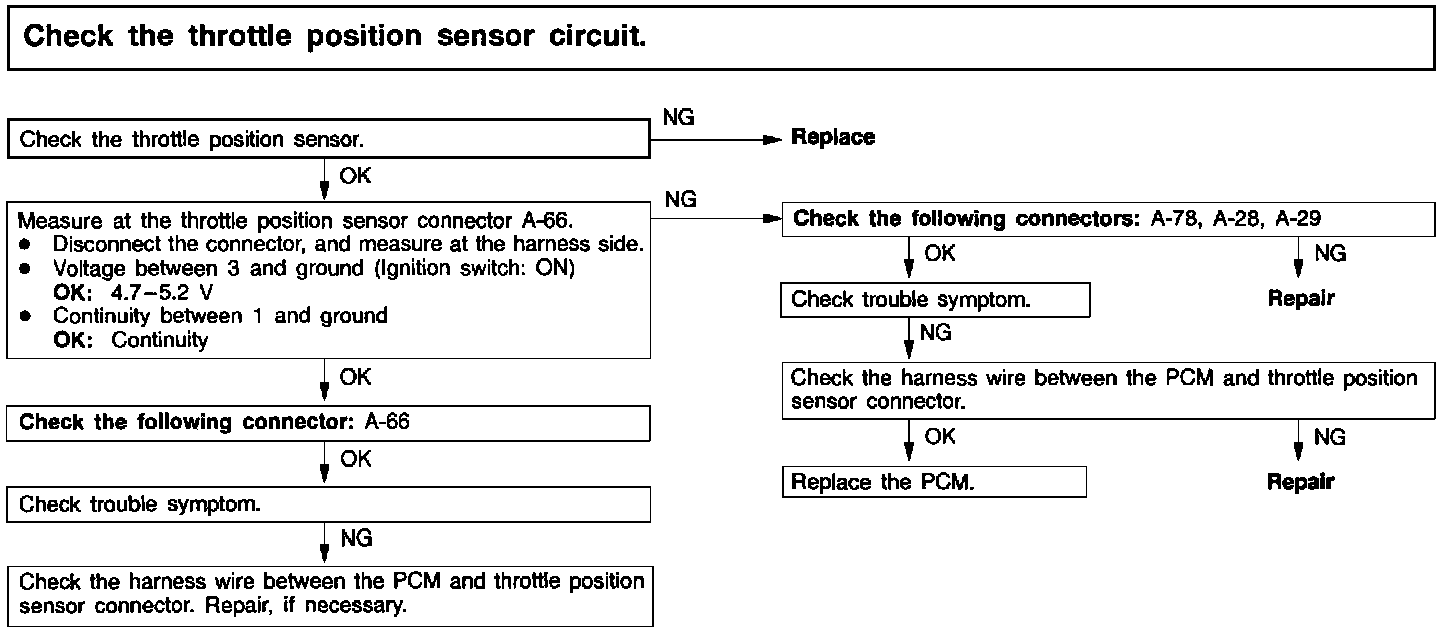

Inspection Procedure 43:






Check throttle position sensor circuit.
