39 Intake Air Temperature Sensor Circuit

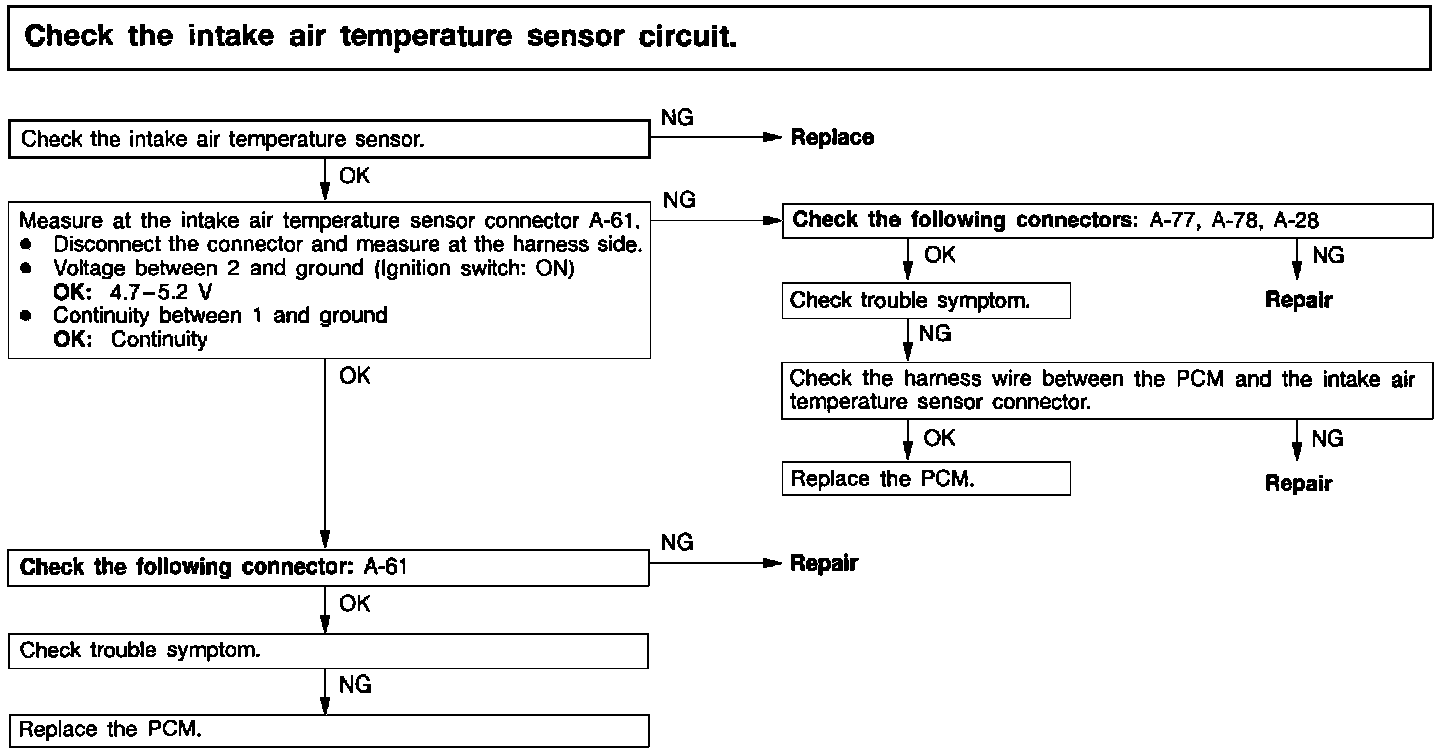

Inspection Procedure 39:






Check intake air temperature sensor circuit.
