Home >> Chrysler >> 1996 >> Sebring L4-2.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom - Mitsubishi >> 38 Coolant Temperature Sensor Circuit

38 Coolant Temperature Sensor Circuit

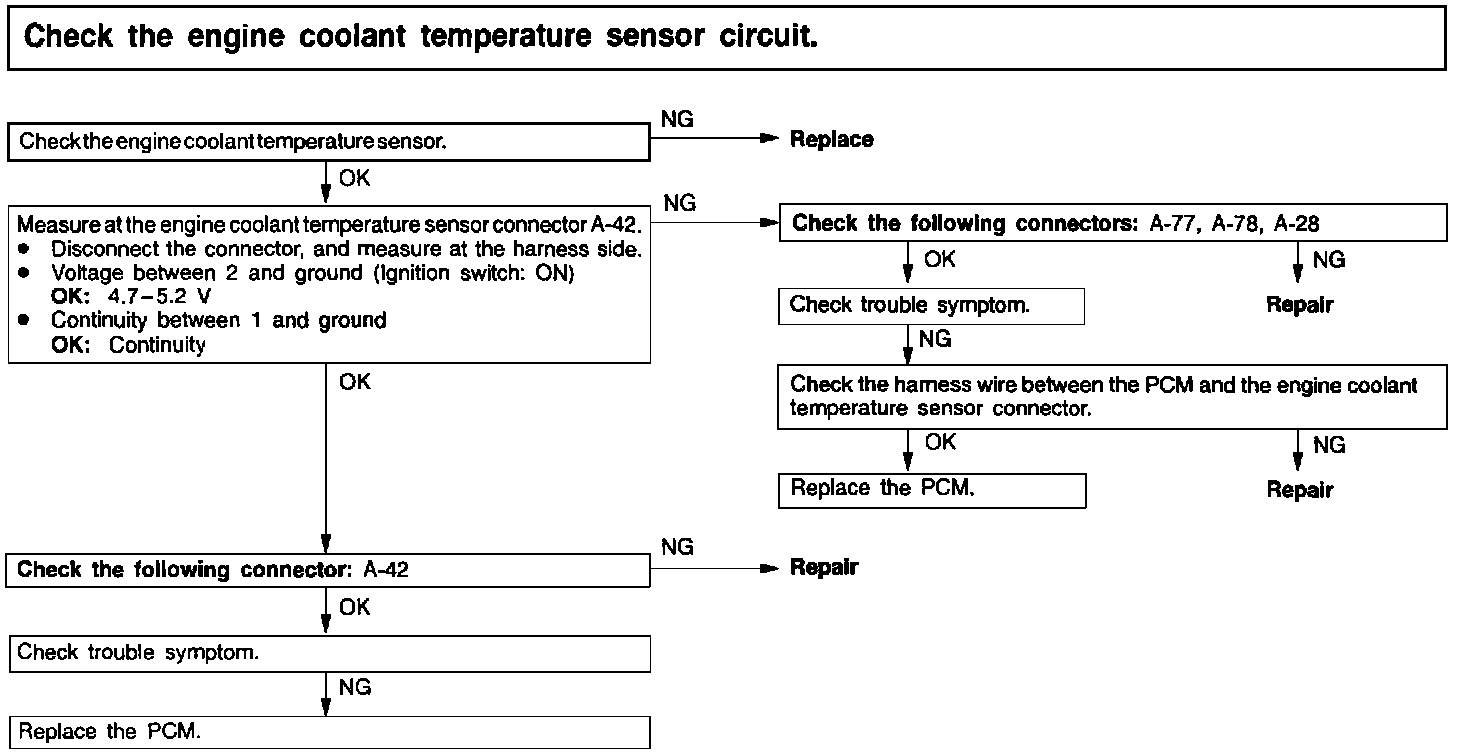

Inspection Procedure 38:






Check engine coolant temperature sensor circuit.
