37 Fuel Pump Drive Control Circuit

Inspection Procedure 37:

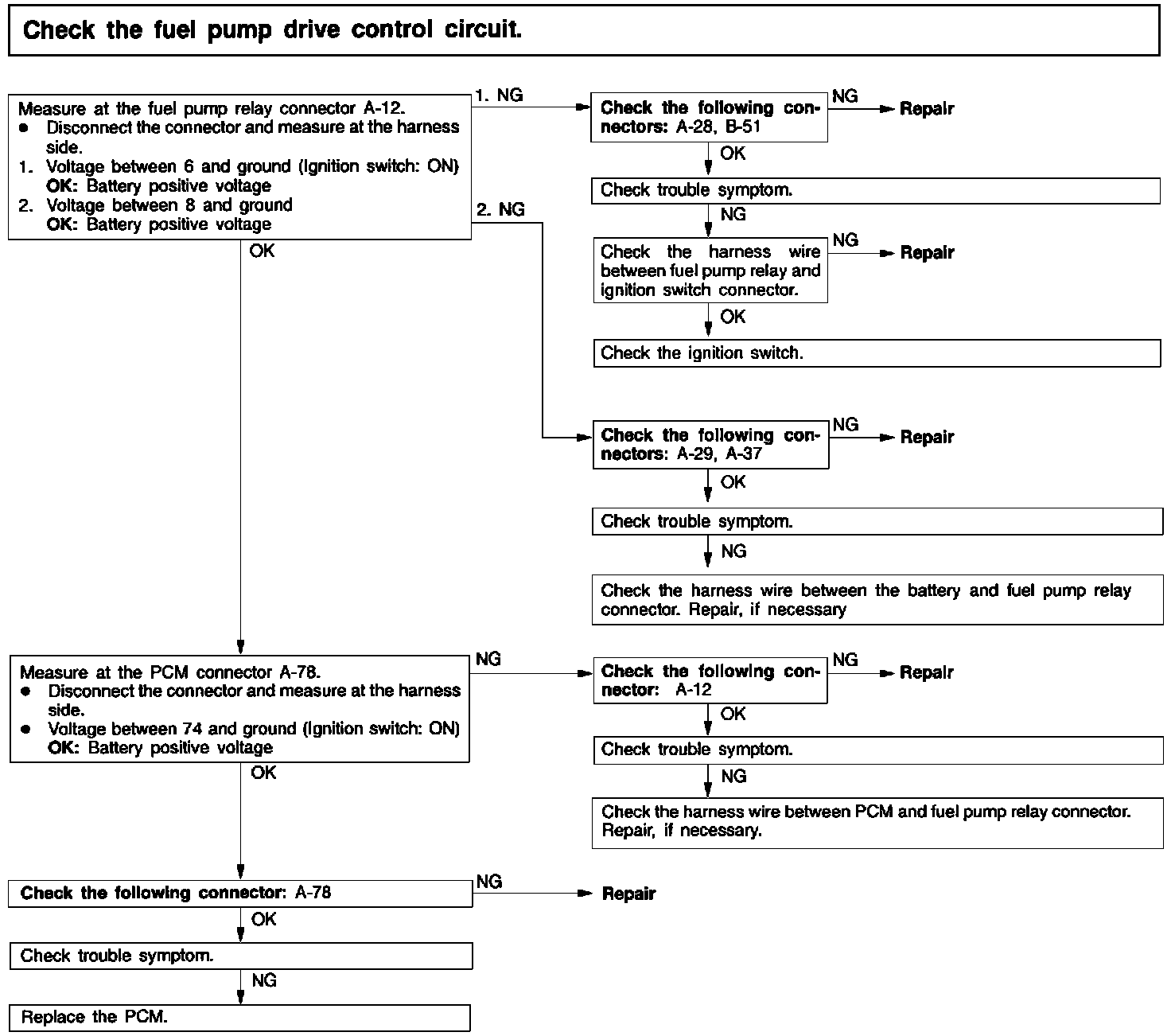

Check the fuel pump drive control circuit.
